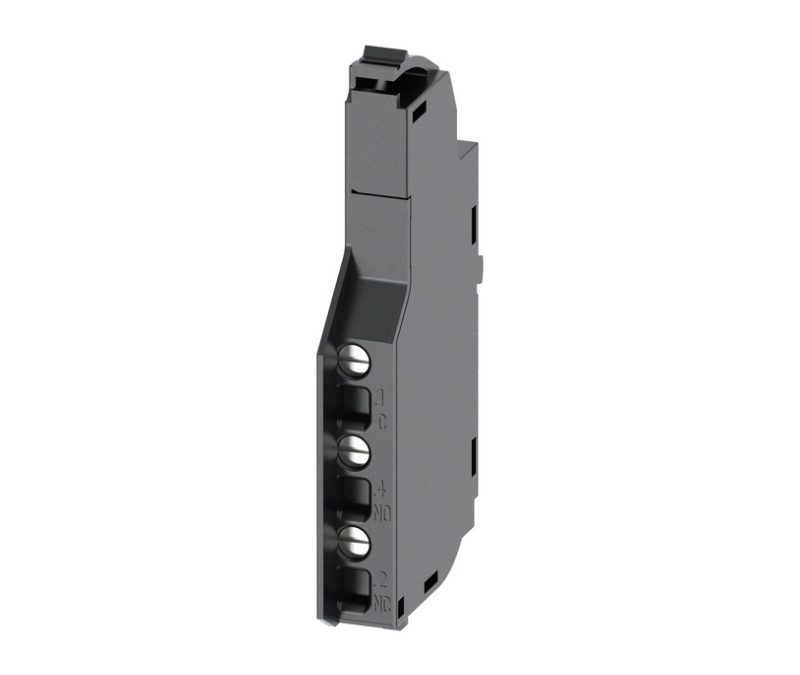

3VA9988-0AA12 siemens auxiliary switch changeover contacts

Siemens Siemens

Model: 3VA9988-0AA12 siemens auxiliary switch changeover contacts

product brand name SENTRON…

Specifications & Service

product brand name		SENTRON
product designation		auxiliary switch
Product version		Accessories for 3VA circuit breakers
Accessories		Auxiliary switch
General technical data
Degree of pollution		3
Overvoltage category		III
Voltage
Tension assign??e de tenue aux chocs		4?kV
Rated operational voltage Ue at AC 50 Hz		240?V
Rated operational voltage Ue with DC		250?V
Current
Thermal current limit Ith		6?A
operational current
?? at AC-12 / at 12 V		6?A
?? at AC-12 / at 24 V		6?A
?? at AC-12 / at 48 V		6?A
?? at AC-12 / at 125 V		6?A
?? at AC-12 / at 220/240 V		6?A
?? at DC-12 / at 12 V		6?A
?? at DC-12 / at 24 V		4?A
?? at DC-12 / at 48 V		2?A
?? at DC-12 / at 110 V		0.5?A
?? at DC-12 / at 250 V		0.25?A
?? at DC-13 / at 12 V		1?A
?? at DC-13 / at 24 V		0.8?A
?? at DC-13 / at 48 V		0.4?A
?? at DC-13 / at 110 V		0.2?A
?? at DC-13 / at 250 V		0.1?A
?? at AC-15 / at 12 V		3?A
?? at AC-15 / at 24 V		3?A
?? at AC-15 / at 48 V		3?A
?? at AC-15 / at 125 V		3?A
?? at AC-15 / at 220/240 V		3?A
Mechanical Design
Height		56?mm
Width		7?mm
depth		30?mm
net weight		30?g
tightening torque / with screw-type terminals / minimum		0.4?N??m
tightening torque / with screw-type terminals / maximum		0.5?N??m
Connections according IEC
stripped length		15?mm
AWG number / as coded connectable conductor cross section / for auxiliary contacts
?? minimum		20
?? maximum		16
Connetctions according UL
stripped length [in]		0.6?in
