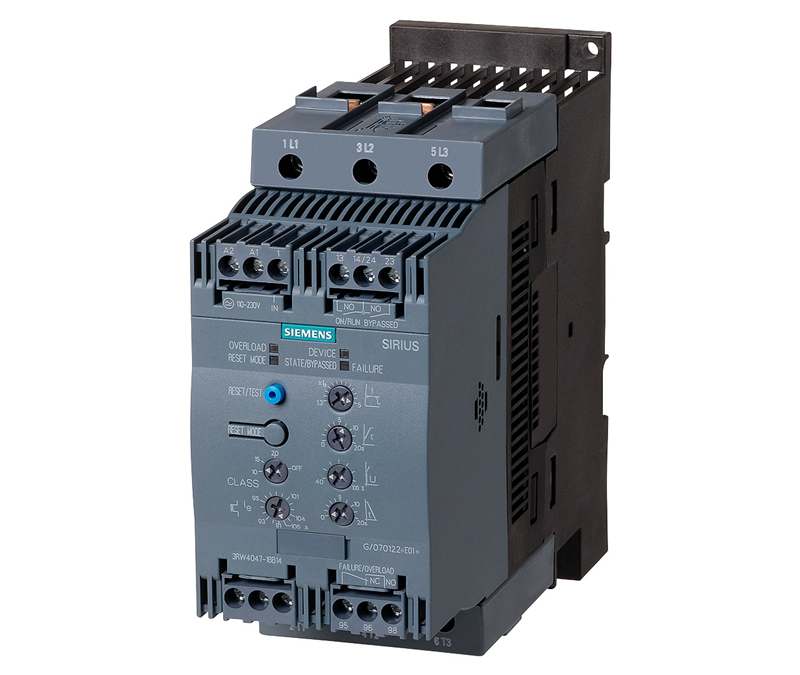

3RW4047-1BB14 SIEMENS SIRIUS soft starter
Model: 3RW4047-1BB14 SIEMENS SIRIUS soft starter
General details: product b…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
General details:
product brand name
SIRIUS
Product equipment
- integrated bridging contact system
Yes
- thyristors
Yes
Product function
- intrinsic device protection
Yes
- motor overload protection
Yes
- evaluation of thermal resistor motor protection
No
- reset external
Yes
- adjustable current limitation
Yes
- inside-delta circuit
No
Product component / outlet for enine brake
No
Item designation
- according to DIN EN 61346-2
Q
- according to DIN 40719 extendable after IEC 204-2 / according
to IEC 750
G
Power Electronics:
product designation
soft starters for standard applications
Size of the engine control device
S3
Width
mm
70
Height
mm
170
Depth
mm
190
Type of mounting
screw and snap-on mounting
mounting position
With additional fan: With vertical mounting surface +/-
90?? rotatable, with vertical mounting surface +/- 22.5??
tiltable to the front and back Without additional fan:
With vertical mounting surface +/-10?? rotatable, with
vertical mounting surface +/- 10?? t
Distance, to be maintained, to the ranks assembly
- upwards
mm
60
- sidewards
mm
30
- downwards
mm
40
Installation altitude / at a height over sea level
m
5,000
Cable length / maximum
m
300
Number of poles / for main current circuit
3
Electrical connections:
Design of the electrical connection
- for main current circuit
screw-type terminals
- for auxiliary and control current circuit
screw-type terminals
Number of NC contacts / for auxiliary contacts
0
Number of NO contacts / for auxiliary contacts
2
Number of change-over switches / for auxiliary contacts
1
Type of the connectable conductor cross-section / for main
contacts / for box terminal / when using the front clamping point
- solid
2x (2.5 … 16 mm2)
- finely stranded / with conductor end processing
2.5 … 35 mm2
- stranded
4 … 70 mm2
Type of the connectable conductor cross-section / for main
contacts / for box terminal / when using the back clamping
point
- solid
2x (2.5 … 16 mm2)
- finely stranded / with conductor end processing
2.5 … 50 mm2
- stranded
10 … 70 mm2
