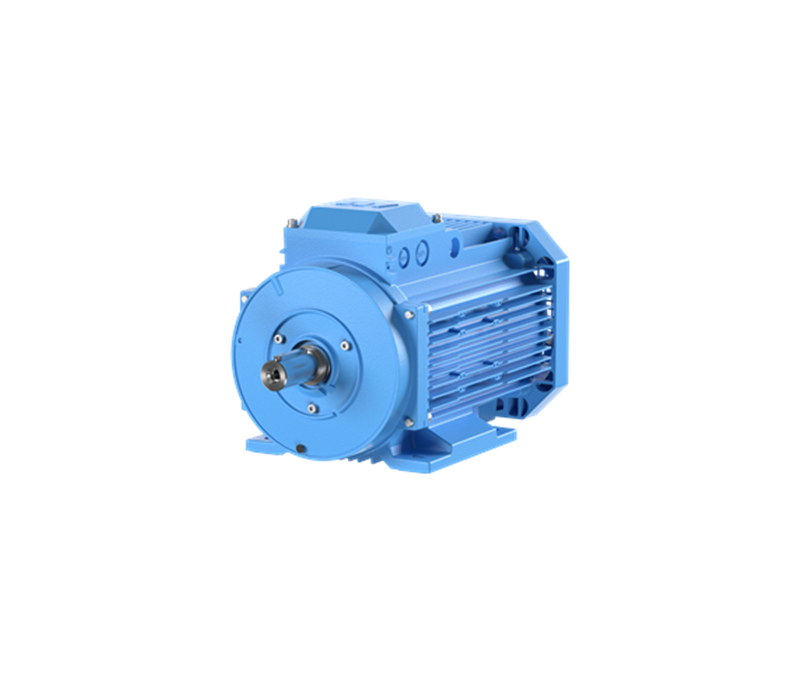

3GAA082314-ASE ABB IE2 High Efficiency Aluminum Motors 0.75 kW
Model: 3GAA082314-ASE ABB IE2 High Efficiency Aluminum Motors 0.75 kW
ABB Type Designation: M3AA…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
ABB Type Designation:
M3AA 80D 4
Invoice Description:
M3AA 80D 4
Product Name:
3-Phase squirrel cage motor
Product Type:
3AA2__M3AA_IE2_AA
Made To Order:
No
Minimum Order Quantity:
1 piece
Order Multiple:
1 piece
Selling Unit of Measure:
piece
Country of Origin:
Poland (PL)
China (CN)
Romania (RO)
Customs Tariff Number:
85015100
Stocked At (Warehouses):
Menden, Germany
Vittuone, Italy
Medium Description:
0.75kW, 4 Poles, Frame Size 80, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GAA082314-ASE)
Short Description:
0.75kW, 4P, Frame Size 80, 3PH, 400V, 50Hz, IP55, IMB3/IM1001
Input Voltage (Uin):
400 V
Frequency (f):
50 Hz
Output Power:
0.75 kW
Altitude:
1000 m
Ambient Temperature:
40 °C
IC Class:
IC411
IE Class Data (50 Hz):
IE Class IE2
Full Load (100%) 79.8 %
Partial Load (75%) 81.3 %
Partial Load (50%) 79.9 %
IE Class Data (60 Hz):
IE Class IE2
Full Load (100%) 82.6 %
Partial Load (75%) 82.5 %
Partial Load (50%) 79.8 %
IP Class:
IP55
Insulation Class:
ICLF
Direction of Rotation:
Both sides
Number of Poles (High):
4
Two Speed Motor:
No
Type of Duty:
S1
Voltage Code:
S
Mechanical
Frame Material:
Aluminum
Frame Size:
80
Bearing:
6204-2Z/C3
Bearing NDE:
6203-2Z/C3
Lubrication:
For life
IM Class:
IMB3 IM1001
Terminator Box Location:
Top
Dimensions
Package Level 1 Units:
0 carton
Product Net Depth / Length:
292.5 mm
Product Net Height:
193.5 mm
Product Net Width:
154 mm
Product Net Weight:
10 kg
Gross Weight:
13 kg
