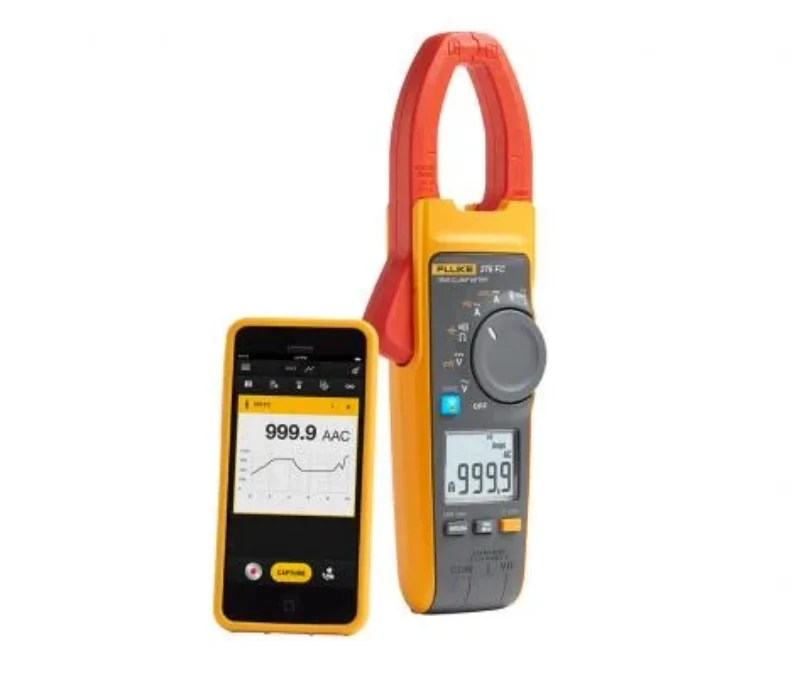

376FC Fluke True-RMS Clamp Meter with iFlex
Model: 376FC Fluke True-RMS Clamp Meter with iFlex
Specifications: Fluke 376 …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Specifications: Fluke 376 FC True-RMS Clamp Meter with iFlex
| General Specifications | ||||||
| AC Current via Jaw | ||||||
| Range | 999.9 A | |||||
| Resolution | 0.1 A | |||||
| Accuracy | 2% ±5 digits (10 Hz to 100 Hz) | |||||
| 2.5% ±5 digits (100-500 Hz) | ||||||
| Crest Factor (50 Hz/60 Hz) | 3 @ 500 A | |||||
| 2.5 @ 600 A | ||||||
| Add 2% for C.F. >2 | ||||||
| AC Current via Flexible Current Probe | ||||||
| Range | 2500 A | |||||
| Resolution | 0.1 A (≤ 600 A) | |||||
| 1 A (≤ 2500 A) | ||||||
| Accuracy | 3% ±5 digits (5 – 500 Hz) | |||||
| Crest Factor (50/60Hz) | 3.0 at 1100 A | |||||
| 2.5 at 1400 A | ||||||
| 1.42 at 2500 A | ||||||
| Add 2% for C.F. > 2 | ||||||
 |
||||||
| i2500-10 Flex | i2500-18 Flex | i2500-36 Flex | ||||
| A | ||||||
| Distance from Optimum | 0.5 in (12.7 mm) | 1.4 in (35.6 mm) | 4.8 in (122.2 mm) | |||
| Error | ±0.5 % | ±0.5 % | ±0.5 % | |||
| B | ||||||
| Distance from Optimum | 0.8 in (20.3 mm) | 2.0 in (50.8 mm) | 5.3 in (133.6 mm) | |||
| Error | ±1.0 % | ±1.0 % | ±1.0 % | |||
| C | ||||||
| Distance from Optimum | 1.4 in (35.6 mm) | 2.5 in (63.5 mm) | 5.8 in (147.6 mm) | |||
| Error | ±2.0 % | ±2.0 % | ±2.0 % | |||
| Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range. | ||||||
| DC Current | ||||||
| Range | 999.9 A | |||||
| Resolution | 0.1 A | |||||
| Accuracy | 2% ±5 digits | |||||
| AC Voltage | ||||||
| Range | 1000 V | |||||
| Resolution | 0.1 V (≤600.0 V) | |||||
| 1 V (≤1000 V) | ||||||
| Accuracy | 1% ±5 digits (20 Hz to 500 Hz) | |||||
| DC Voltage | ||||||
| Range | 1000 V | |||||
| Resolution | 0.1 V (≤600.0 V) | |||||
| 1 V (≤1000 V) | ||||||
| Accuracy | 1% ±5 digits | |||||
| mV dc | ||||||
| Range | 500.0 mV | |||||
| Resolution | 0.1 mV | |||||
| Accuracy | 1% ±5 digits | |||||
| Frequency via Jaw | ||||||
| Range | 5.0 Hz to 500.0 Hz | |||||
| Resolution | 0.1 Hz | |||||
| Accuracy | 0.5% ±5 digits | |||||
| Trigger level | 5 Hz to 10 Hz, ≥10 A | |||||
| 10 Hz to 100 Hz, ≥5 A | ||||||
| 100 Hz to 500 Hz, ≥10 A | ||||||
| Frequency via Flexible Current Probe | ||||||
| Range | 5.0 Hz to 500.0 Hz | |||||
| Resolution | 0.1 Hz | |||||
| Accuracy | 0.5% ±5 digits | |||||
| Trigger level | 5 Hz to 20 Hz, ≥25 A | |||||
| 20 Hz to 100 Hz, ≥20 A | ||||||
| 100 Hz to 500 Hz, ≥25 A | ||||||
| Resistance | ||||||
| Range | 60 kΩ | |||||
| Resolution | 0.1 Ω (≤600 Ω) | |||||
| 1 Ω (≤6000 Ω) | ||||||
| 10 Ω (≤60 kΩ) | ||||||
| Accuracy | 1% ±5 digits | |||||
| Capacitance | ||||||
| Range | 1000 μF | |||||
| Resolution | 0.1 μF (≤ 100 μF) | |||||
| 1 μ F (≤ 1000 μF) | ||||||
| Accuracy | 1% ±4 digits | |||||
| Mechanical Specifications | ||||||
| Maximum voltage between any terminal and earth ground | 1000 V | |||||
| Batteries | 2 AA, NEDA 15A, IEC LR6 | |||||
| Operating temperature | -10 °C to +50 °C | |||||
| Storage temperature | -40 °C to +60 °C | |||||
| Operating humidity – non-condensing (< 10°C) |
≤90% RH (at 10 °C to 30 °C) | |||||
| ≤75% RH (at 30 °C to 40 °C) | ||||||
| ≤45% RH (at 40 °C to 50 °C) | ||||||
| Operating altitude | 2000 m | |||||
| Storage altitude | 12,000 m | |||||
| Size (L x W x H) | 249 x 85 x 45 mm | |||||
| Weight | 395 g | |||||
| Jaw opening | 34 mm | |||||
| Flexible current probe diameter | 7.5 mm | |||||
| Flexible current probe cable length (head to electronics connector) |
1.8 m | |||||
