Allen-Bradley

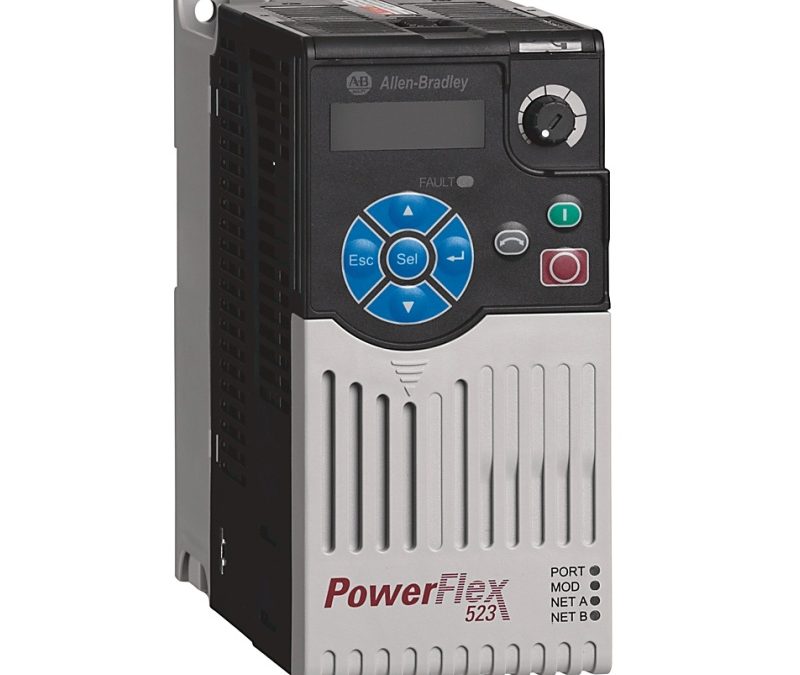

25A-D2P3N104 ALLEN BRADLEY Drive
Model: 25A-D2P3N104 ALLEN BRADLEY Drive
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for 25A-D2P3N104
| Brand | Allen-Bradley |
|---|---|
| Part Number/Catalog No. | 25A-D2P3N104 |
| Output Current | 2.3 A |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Input Voltage: | 380-480 VAC |
| Input Phase: | 3-Phase |
| Output Voltage: | 0-460VAC |
| Output Power: | 0.75 kW or 1.0 HP |
| I/O: | Discrete Inputs: Five (5) Sink / Source Discrete Outputs: One (1) N.O.; One (1) N.C. Contacts; Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Input 0-10VDC; 0- 20mA |
| Installation: | Panel Mount / DIN Rail |
| Zero Stacking: | Supported |
| Enclosure Rating: | IP20 / NEMA UL Type Open |
| Control Method: | Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), Closed loop velocity vector control, and Permanent Magnet motor control. |
| PointStop Technology: | Integrated |
| Integrated safety: | Safe-Torque Off (STO) functionality |
| Built-in communication port: | RS485 |
| Series | PowerFlex 523 |
| Voltage | Three Phase, 480 VAC |
| Enclosure Type | IP20 NEMA / Open Type |
| Interface Module | Standard |
| Frame Size | Frame A |
| EMC Filtering Option | No Filtering |
