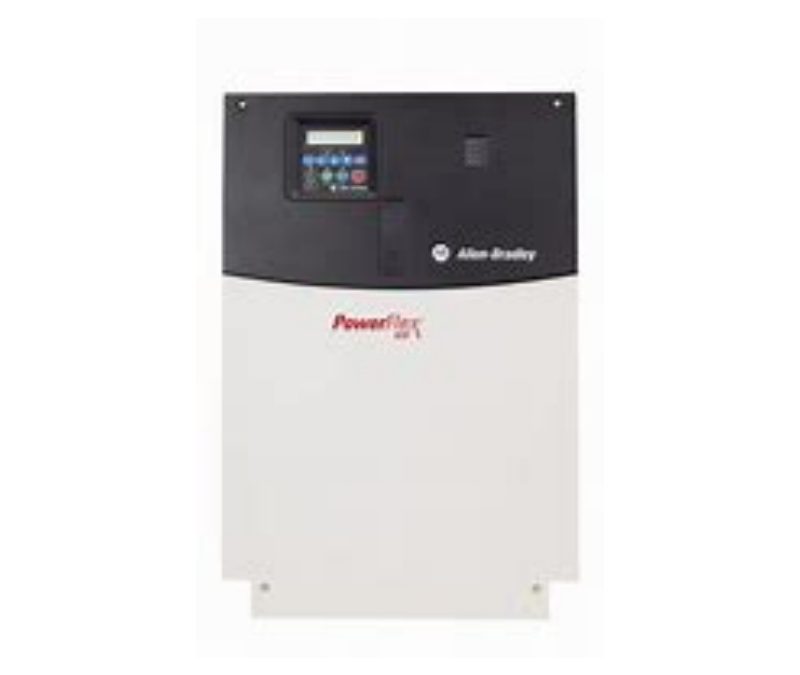

22P-D142A103 Allen-Bradley Frequency AC Drive
Model: 22P-D142A103 Allen-Bradley Frequency AC Drive
Manufacturer Rockwell Auto…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Manufacturer | Rockwell Automation |
| Built-in communication port: | RS485 |
| Control Method: | Sinusoidal PWM; Volts / Hertz |
| Enclosure Rating: | IP20 / NEMA UL Open Type |
| Installation: | Panel Mount |
| Embedded I/O: | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) Open Output; Two (2) Form C Contacts Analog Input: Two (2) Analog Input 0-10VDC; 0- 20mA Analog Output: Two (2) Analog Input 0-10VDC; 0- 20mA |
| Carrier Frequency: | 2…8 kHz, Drive rating based on 4 kHz |
| Output Frequency: | 0-320 Hz (programmable) |
| Output Power: | 75 HP (55 kW) |
| Output Current: | 142 A @ 45o C; 128 @ 50o C |
| Output Voltage: | 0-460VAC |
| Input Current: | 150 A |
| Input Phase: | 3-Phase |
| Product Family: | PowerFlex 400 for Fan and Pump applications |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 22C-D142A103 |
| Input Voltage | 380-528VAC |
| Product Line | Powerflex 400 |
| Drive Type | Fan & Pump |
| Horsepower | 100 |
| Phase | Three-Phase |
| Enclosure | Panel Mount – IP30, NEMA/UL Type 7 |
| Amperage | 142 Amps |
| Communication | Modbus RTU, P1-Floor, FLN, Metasys N2, and DSI. |
| Frame Size | E |
| Power Dissipation | 2043 Open IP20 Watts |
| Flange Mount | None |
