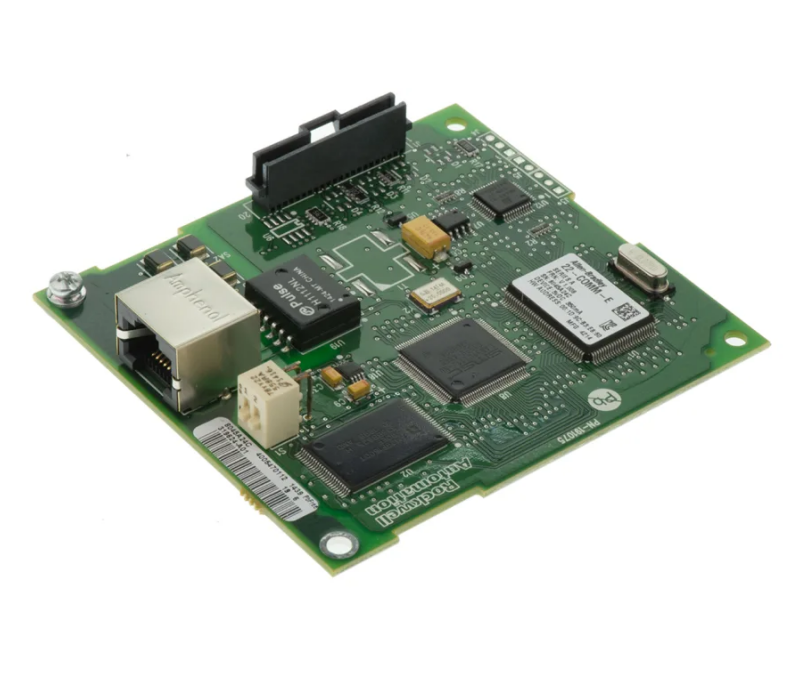

22-COMM-E Allen Bradley Drive Board
Model: 22-COMM-E Allen Bradley Drive Board
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for 22-COMM-E
| Part Number/Catalog No. | 22-COMM-E |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Description | Ethernet I/P communication adapter |
| Compatible Drives | PowerFlex 4, 40 and 400 |
| Communication Port | One (1) RJ45 |
| Communication Protocol | Ethernet I/P |
| Data Rate | 10 Mbps Full Duplex, 10 Mbps Half Duplex, 100 Mbps Full Duplex, and 100 Mbps Half Duplex. |
| No. of TCP connections | 30 TCP connections |
| RPI | 5 ms minimum |
| Packet Rate | Up to 400 total I/O packets per second (200 in and 200 out) |
| Drive Power consumption | 350 mA at 5V DC supplied by the host (drive or DPI External Comms Kit) |
| Operating Temperature | `-10…50 °C (14…122 °F) |
| Storage | -40…85 °C (-40…185 °F) |
| Relative Humidity | 5…95% non-condensing |
| Dimensions: | Height 19 mm (0.75 inches) Length 86 mm (3.39 inches) Width 78.5 mm (3.09 inches) |
| Regulatory Compliance | UL508C, CAN / CSA C22.2 No. 14-M91, EN50178 and EN61800-3, EN61800-3 specifications |
| Product Line | PowerFlex 40 |
| Product Type | EtherNet/IP Adapter |
| Status Indicators | 4 LEDs |
| Connection | Ethernet/IP |
| DSI Connector | 20 pins |
| Cable | RJ-45 CAT compliant cable |
| UPC | 820919134623 |
