Allen-Bradley

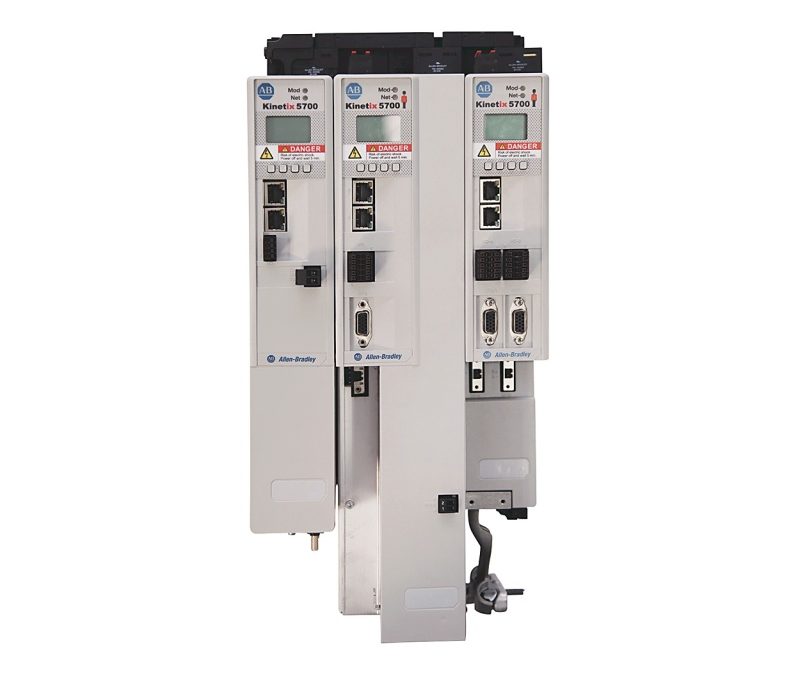

2198-S086-ERS3 Allen-Bradley Inverter
Model: 2198-S086-ERS3 Allen-Bradley Inverter
Height 433 mm Width 85 mm …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Height | 433 mm |
|---|---|
| Width | 85 mm |
| Depth | 250 mm |
Electrical
| Continuous output current (rms) | 43 A |
|---|---|
| Internal capacitance | 560 µF |
| Peak output current (rms) | 86 A |
| Rated power output | 475 W @ 100% |
| Peak output current | 121.6 A, zero to peak |
| Continuous output current | 60.8 A, zero to peak |
| DC input current | 45.7 A @ 458…747V DC |
| Bandwidth | 400 Hz @ velocity loop, maximum |
| Continuous power output, nom | 29.7 kW @ 324…528V rms, 3-phase |
| Control power current | 9.6 A @ 24V DC current, maximum (with maximum brake current) |
| PWM frequency | 4 kHz |
Mechanical
| Weight | 5.21 kg |
|---|
Environmental
| Vibration | 2 G @ 55…500 Hz, peak constant acceleration |
|---|---|
| Altitude | Storage range (nonoperating): 3000 m (9843 ft) during transport |
| Operating temperature | 0 °C |
| Nonoperating temperature | -40 °C |
| Protection class | (IEC 60529): IP20 |
| Degree of pollution | (IEC 61800-5-1): 2 |
| Relative humidity | Operating: 5…95% noncondensing, Non-operating: 5…95% noncondensing |
| Shock | 15 G, 11 ms half-sine pulse (3 pulses in each direction of 3 mutually perpendicular directions) |
