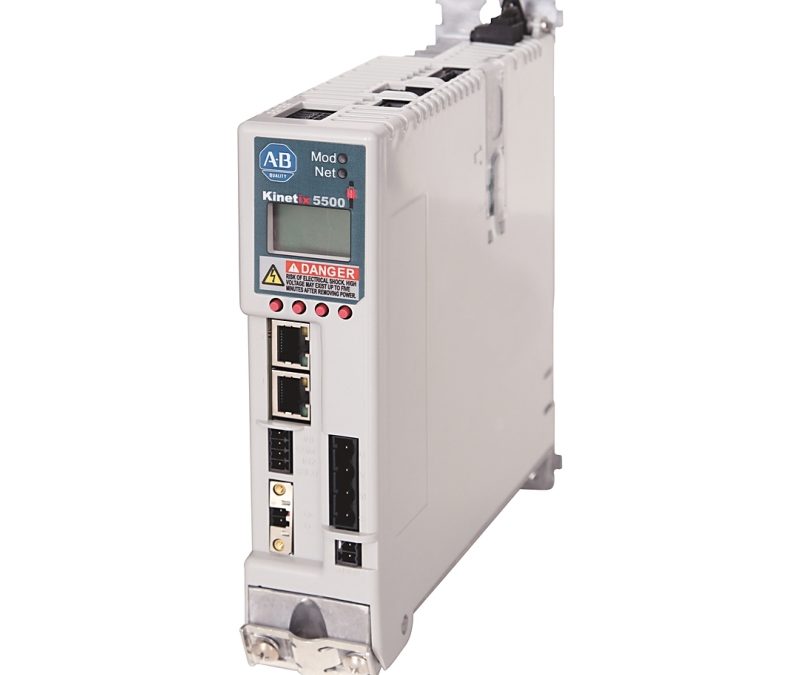

2198-H015-ERS Allen-Bradley AC Servo Drive
Model: 2198-H015-ERS Allen-Bradley AC Servo Drive
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for 2198-H015-ERS
| Input Voltage | 195…264V rms, single-phase (240V nom); 195…264V rms, three-phase (240V nom); 324…528V rms, three-phase (480V nom); |
|---|---|
| Continuous Output Current (0-peak) | 7.1 A |
| Part Number/Catalog No. | 2198-H015-ERS |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Product Category | Kinetix 5500 |
| Input Frequency: | 47…63 Hz |
| Continuous Output Power | 1.0 kW at 195…264V rms, single-phase; 1.5 KW at 195…264V rms, three-phase; 3.2 kW at 324…528V rms, three-phase; |
| Continuous Output Current (rms) | 5.0 A |
| Peak Output Current (0-peak) | 12.5 A |
| Peak Output Current (rms) | 17.7 A |
| Velocity Loop | 300 Hz |
| Current Loop | 1000 Hz |
| Efficiency | 97% |
| Short-circuit current rating | 200,000 A (rms) symmetrical |
| Weight | 5.0 pounds (2.3 kilograms) |
| Dimensions | 2.16 x 8.90 x 10.43 inches (55 x 226 x 265 millimeters) |
| Hardwired Safety | Yes |
| Frame Size | Frame Size 2 |
| Peak Output Current | 12.5 Amps |
| Nom Drive Voltage | 240 Volts (Single-Phase); 240 to 480 Volts (3-Phase) |
| Integrated Safety Over Ethernet/IP | No |
