Allen-Bradley

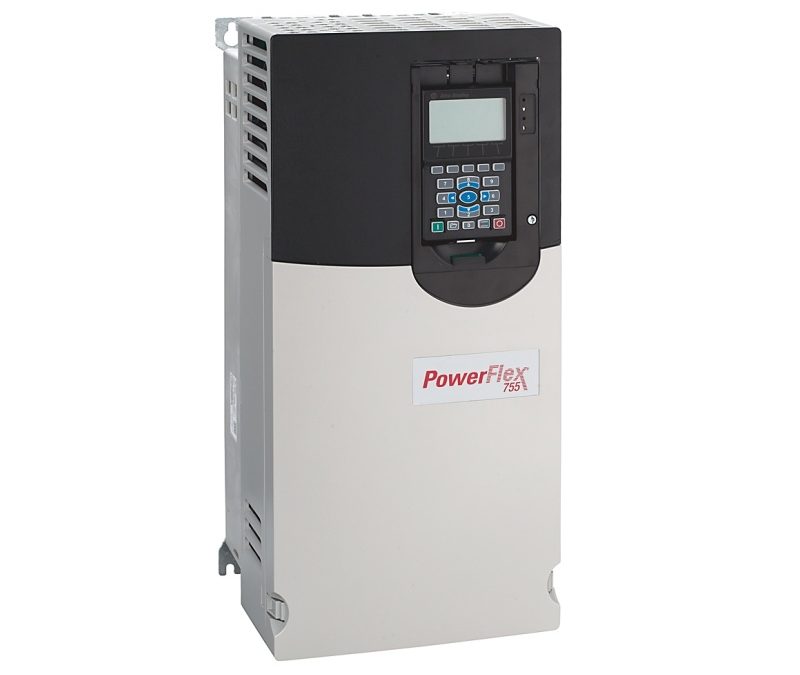

20F11NDO34AA0NNNNN Allen Bradley Drives
Model: 20F11NDO34AA0NNNNN Allen Bradley Drives
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for 20F11ND034AA0NNNNN
| Manufacturer | Rockwell Automation |
|---|---|
| Part Number/Catalog No. | 20F11ND034AA0NNNNN |
| Brand | Allen-Bradley |
| Series | PowerFlex 753 |
| Enclosure Rating | IP20/IP00, NEMA/UL Type Open |
| Voltage Rating | 480VAC/650VDC |
| Continuous Output Power, ND | 25 HP |
| Continuous Output Current, HD | 27 Amperes |
| Continuous Output Power, HD | 20 HP |
| DC Filtering | Yes |
| Default CM Cap Connection | Jumper removed |
| Internal Resistor | No |
| Human Interface Module (HIM) | Not Included |
| Premiere integration: | Supported |
| Optional communication protocols: | CIP Motion; ControlNet (Coax or Fiber); DeviceNet; RS485 DFI; PROFIBUS DP; Modbus/TCP; HVAC (Modbus RTU, FLN P1, Metasys N2); Bluetooth; CANopen and LonWorks. |
| Control Methods: | Vector Control w/FORCE Technology with and without an encoder feedback; Sensorless Vector Control (SVC); Volts per Hertz control and Permanent Magnet Motor control but only the interior component |
| Voltage Class | 480 AC Volts |
| Output Current | 34 Amperes |
| Phase Count | Three |
| Frame Size | 3 |
| Enclosure Type | IP00 (IP20 NEMA) |
| EMC Filtering Options | Filtered, No CM Jumper |
| Input Type | AC Input with DC Terminals |
| Dynamic Breaking | DB Transistor |
| Weight | 26.1 lbs |
| Dimensions | 17.87 x 7.48 x 8.35 in |
