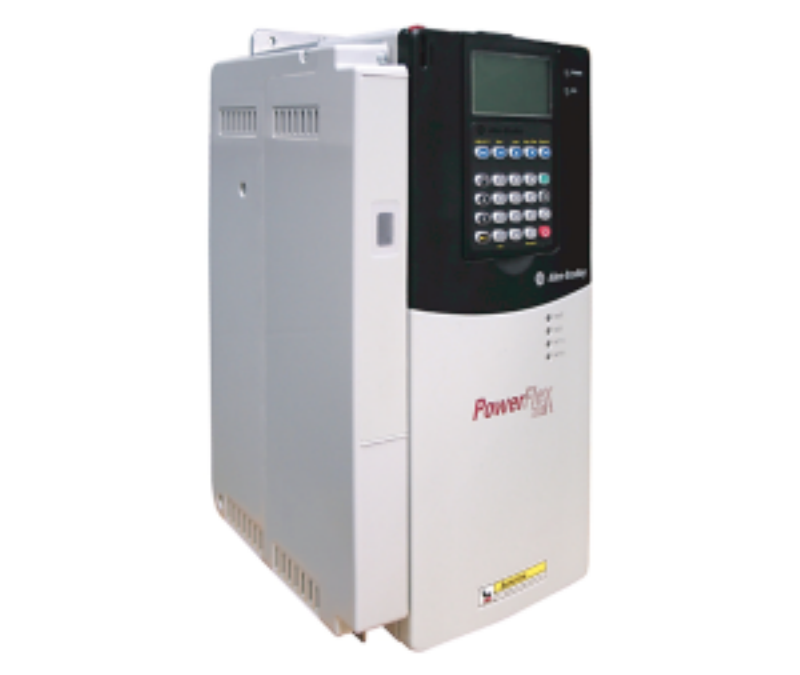

20DC015A0EYNANANE Allen-Bradley AC Drive
Model: 20DC015A0EYNANANE Allen-Bradley AC Drive
Degree of protection (IP) …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Degree of protection (IP) | IP20 |
|---|---|
| Shock | 10 G peak for 11 ms duration (±1.0 ms) |
| PWM frequency | 4 kHz @ 540V DC |
| Vibration | 0.152 mm (0.006 in.) displacement, 1 G peak, 5.5 Hz |
| Height, approx | 336 mm |
|---|---|
| Depth, approx | 200 mm |
| Width, approx | 166.9 mm |
| Weight, approx | Drive: 7.03 kg |
| Sound level | Frame 1: 59 dB @ 30 CFM fan speed |
|---|---|
| Altitude | 1000 m (3300 ft.) maximum without derating |
| Degree of protection (NEMA) | 1 |
| Atmosphere | Drive must not be installed in an area where the ambient atmosphere contains volatile or corrosive gas, vapors, or dust, If the drive is not going to be installed for a period of time, it must be stored in an area where it will not be exposed to a corrosi |
| Operating temperature | 50 °C @ 540V DC |
| Storage temperature | -40 °C |
| Relative humidity | 5…95% noncondensing |
| Surrounding air temperature without derating | NEMA/UL Type 1: 0° to 40° C (32° to 104° F) |
