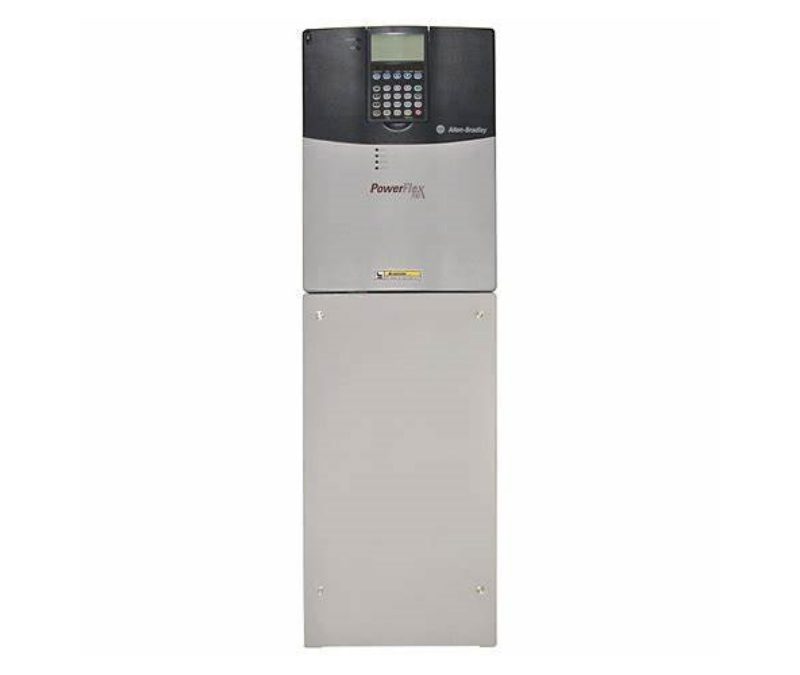

| Number of analogue outputs |
2 |
| Mains voltage |
540 V |
| Integrated breaking resistance |
No |
| Brake IGBT |
Without brake IGBT |
| Internal communication module |
No communication module |
| Input voltage rating |
540V DC precharge |
| Logic control ride-thru |
0.5 seconds minimum, 2 seconds typical |
| Brake resistor |
No internal brake resistor |
| Documentation |
Manual |
| Carrier frequency |
2, 4, 8, and 10 kHz. Drive rating based on 4 kHz |
| Encoder quadrature |
90 degrees, ±27 degrees at 25 °C (77 °F) |
| Digital input latency, typical |
9.2 ms @ stop signal for SVC motor control |
| Heat sink thermistor |
Monitored by microprocessor overtemp trip |
| Digital input latency |
9.2…16.0 ms @ start signal for SVC motor control |
| Drive to motor power ratio, max |
Recommended not greater than 2:1 ratio |
| Stop modes |
Multiple programmable stop modes including — Ramp, Coast, DC-brake, Fast brake, Ramp-to-hold and S-curve |
| Frequency accuracy |
Digital input: within ±0.01% of set output frequency |
| Acceleration/deceleration |
Two independently programmable accel and decel times. Each time can be programmed from 0…3600 seconds in 0.1 second increments |
| Analog input latency, typical |
6.4 ms @ speed signal for SVC motor control |
Allen-Bradley
