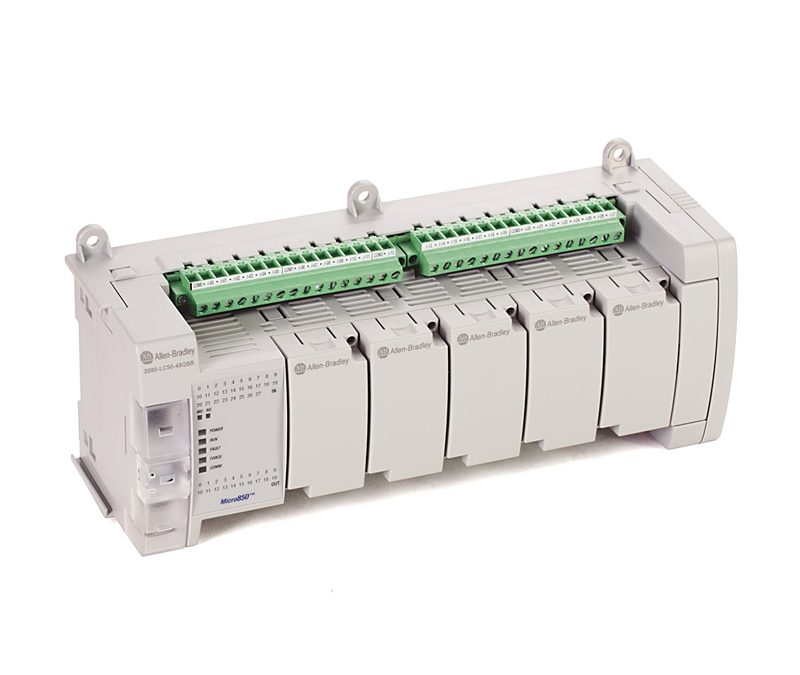

2080-LC50-48QBB Allen Bradley Micro850 Series PLC CPU

Number of I/O：48 (28 inputs, 20 outputs)

Dimensions HxWxD：90 x 238 x 80 mm(3.54 x 9.37 x 3.15 in.)

Shipping weight, approx：0.725 kg (1.60 lb)

Wire type：Use Copper Conductors only

Terminal screw torque：0.4…0.5 Nm (3.5…4.4 lb-in.) using a 0.6 x 3.5 mm flat-blade screwdriver

Input circuit type：120V AC 12/24V sink/source (standard) 24V sink/source (high-speed)

Output circuit type：Relay 24V DC sink(standard andhigh-speed)  24V DC source(standard and high-speed)

Power consumption：33 W

Power supply voltage range：21.4…26.4V DC Class 2, or Limited Voltage Limited Current Source (LVLC)

I/O rating：Input 120V AC,16 mAOutput 2 A,240V AC,2 A, 24V DC   Input 24V, 8.8 mAOutput 2 A,240V AC, 2 A, 24VDC  Input 24V, 8.8 mAOutput 24V DC, 1 A per point(surrounding air temperature 30 °C)24V DC, 0.3 A per point (surroundingair temperature 65 °C)

Insulation stripping length：7 mm (0.28 in.)
