1SFA664003R106 ABB TVOC-2-DP6 Detector Cable 6 m

Extended Product Type:
TVOC-2-DP6
Product ID:
1SFA664003R1060
EAN:
7320500382295
Catalog Description:
TVOC-2-DP6 Detector
Long Description:

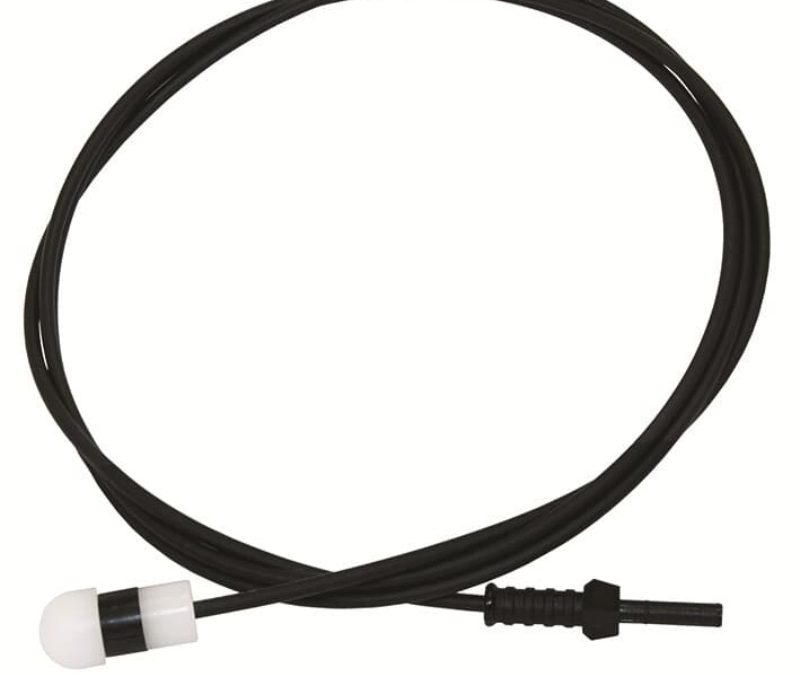

The TVOC-2-DP6 Detector Cable 6 m is a key accessory to the TVOC-2 Arc Guard System. The detectors are installed in the switchgear panels to monitor for any unwanted arc flashes. The detectors consists of a fiber optic cable connected to a lens that can detect light in a 180 degree angle at distances of 3 m, depending on the light intensity.

Circular Value
Toxic Substances Control Act – TSCA:
2CMT001035D0902a
Environmental
Ambient Air Temperature:
Operation -25 … +70 °C
Storage -25 … +85 °C
Environmental Information:
1SFC170003D0201
REACH Declaration:
2AGS2022-006202
RoHS Information:
2AGS2022-006277-RoHS
RoHS Status:
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
Order Code US and Canada:
TVOC-2-DP6
E-Number (Finland):
2712007
E-Number (Norway):
4116463
E-Number (Sweden):
2801715
EAN:
7320500382295
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85389099
Dimensions
Product Net Width:
350 mm
Product Net Height:
20 mm
Product Net Depth / Length:
300 mm
Product Net Weight:
0.06 kg
Container Information
Package Level 1 Units:
bag 1 piece
Package Level 1 Width:
300 mm
Package Level 1 Height:
20 mm
Package Level 1 Depth / Length:
350 mm
Package Level 1 Gross Weight:
0.06 kg
