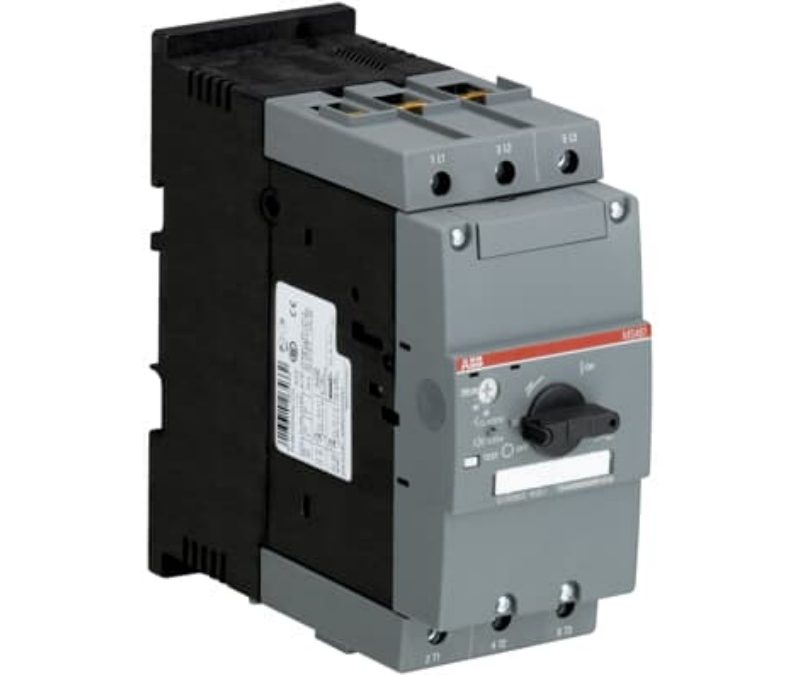

1SAM580000R1007 ABB Manual Motor Starter 45 … 63 A
Model: 1SAM580000R1007 ABB Manual Motor Starter 45 … 63 A
Dimensions Product Net Wid…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Dimensions
Product Net Width:70 mm
Product Net Height:165 mm
Product Net Depth / Length:174 mm
Product Net Weight:2.255 kg
tting Range:45 … 63 A
Rated Operational Power AC-3 (Pe):(400 V) Three Phase 30 kW
Rated Operational Voltage:Main Circuit 690 V AC
Main Circuit 450 V DC
Rated Operational Current (Ie):50 A
Rated Operational Current AC-3 (Ie):50 A
Rated Frequency (f):Main Circuit 50 Hz
Main Circuit 60 Hz
Rated Impulse Withstand Voltage (Uimp):Main Circuit 6 kV
Rated Insulation Voltage (Ui):690 V
Power Loss:at Rated Operating Conditions per Pole 3.4 … 6.7 W
Number of Poles:3
Conventional Free-air Thermal Current (Ith):Main Circuit 50 A
