Allen-Bradley

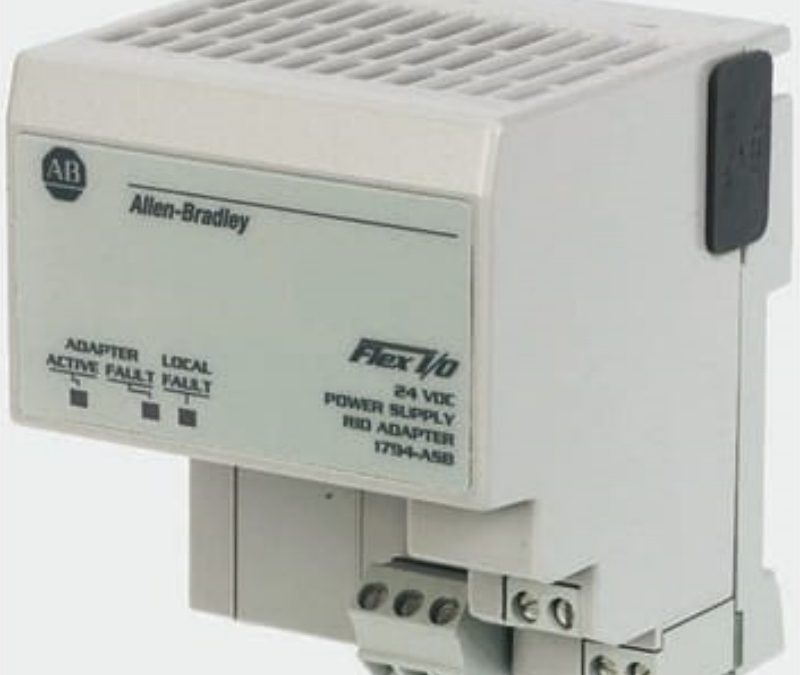

1794-ASB ALLEN BRADLEY Remote I/O Adaptor
Model: 1794-ASB ALLEN BRADLEY Remote I/O Adaptor
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for 1794-ASB
| Manufacturer | Rockwell Automation |
|---|---|
| Power Dissipation | 4.6 W @ 31.2V DC |
| Brand | Allen-Bradley |
| Product Description: | Remote I/O communication Adapter |
| Communication Port: | One (1) RIO port |
| Supported Protocol: | RIO |
| Supported topologies: | Daisy Chain |
| Data Transfer speed: | 57.6Kbps, 115.2Kbps, and 230.4kbps |
| Indicators: | Power; Adapter Active; Adapter Fault; Local Fault |
| RIO cable: | Belden 9463 or Equivalent |
| Operating Temperature: | 0 to 55 C (32 to 131 F) |
| Storage Temperature: | -40 to 85 C (-40 to 185 F) |
| Vibration: | Tested 5 g @ 10-500Hz per IEC 68-2-6 |
| Operating Shock: | 30 g peak acceleration, 11(+1)ms pulse width |
| Power Consumption: | 330 mA @ 24V DC |
| Thermal Dissipation | 15.7 BTU/hr @ 24V DC |
| Part Number/Catalog No. | 1794-ASB |
| Product Type | Remote IO Adapter |
| Series | Flex I/O |
| Module Capacity | 8 Modules |
| Mount | DIN Rail |
| Controller Platform | FlexLogix |
| Diagnostic Indicators | Status |
| Enclosure | IP20, Open Type |
| Series Available | 1794-ASB – A/B/C/D/E |
| Communication Rate | 57.6, 115.2, 230.4 Kbps |
| External Power Supply | 450 mA at 24 Volts DC |
| Voltage | 24 Volts DC |
| Dimensions | 4 x 2 x 4 inches |
| UPC | 10662468112175 |
