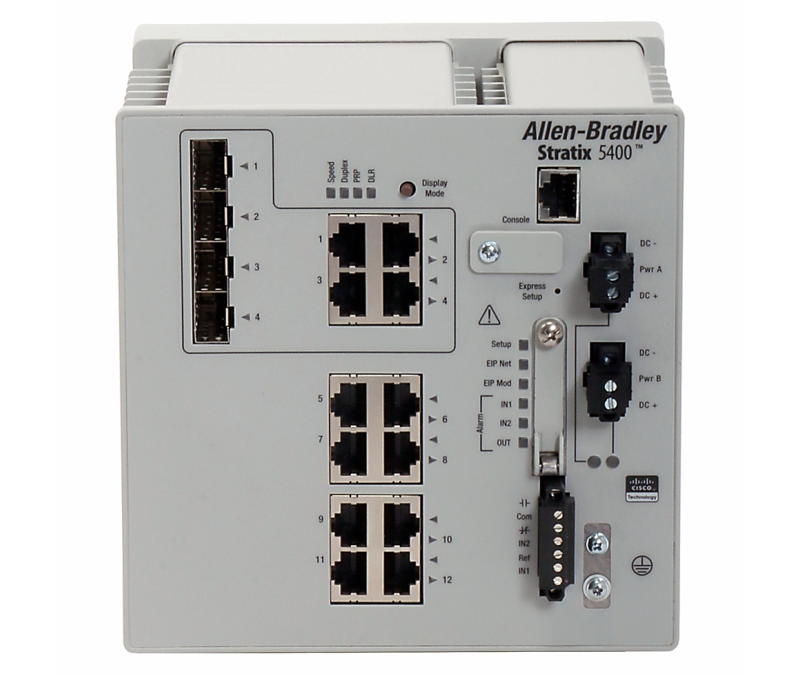

1783-HMS8TG4CGR Allen Bradley Stratix 5400 Managed EtherNet Switch
Model: 1783-HMS8TG4CGR Allen Bradley Stratix 5400 Managed EtherNet Switch
Width 15.54 cm Height 16.4…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Width | 15.54 cm |
|---|---|
| Height | 16.45 cm |
| Depth | 14.67 cm |
| Approximate weight | 2.88 kg |
| Screw torque, alarm terminal | 0.23 Nm |
| Screw torque, ground terminal | 0.51 Nm |
| Screw torque, power terminal | 0.56 Nm |
Electrical
| Number of ports 10/100/1000 Mbps RJ45 | 8 |
|---|---|
| Number of combination-ports RJ45/Mini GBIC | 4 |
| Layer 2 | No |
| Layer 3 | Yes |
| Manageable | Yes |
| Power dissipation | 35 W |
| Number of combination ports 10/100/1000 Mbps | 4 |
| Power consumption at 24V DC, 40 ˚C | 35 W |
| Power input at 12 – 54V DC, maximum | 3.7 A |
| Total number of ports | 12 |
| Wire size, alarm connection, solid or stranded, UL/CSA-rated style 1007 or 1569 twisted-pair copper appliance wiring material (AWM) wire | 0.5 mm² |
| Wire size, ground connection, solid or stranded copper wire | 4 mm² |
| Mounting method | DIN rail (top hat rail) |
| Ethernet | Yes |
| Protection type | Alarm not rated |
| Alarm relay at 30V DC | 1 A |
| Alarm relay at 48V DC | 0.5 A |
| CIP sync (IEEE 1588) | Yes |
| DLR | Yes |
| Isolation voltage (continuous), basic insulation type, all ports to ground | 60 V |
| NAT | Yes |
| Wire size, DC power connection, solid or stranded copper wire rated at 30 ˚C, or greater, above the surrounding air temperature | 0.52 mm² |
| Wire strip length, alarm connection | 6.3±0.5 mm |
| Wire strip length, DC power connection | 6.3±0.5 mm |
| Wiring category on console ports | 3 |
| Wiring category on DC power and alarm ports | 2 |
| Wiring category on Ethernet ports | 2 |
Environmental
| Housing base material | Open-style |
|---|---|
| Nominal position | T3 |
| Delta connected motor power, max | T3 |
| Temperature, surrounding air, maximum | 70 °C |
| ESD immunity, IEC 61000-4-2, air discharges | 8 kV |
| ESD immunity, IEC 61000-4-2, contact discharges | 6 kV |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 2000 – 2700 MHz | 20 Kg/Km |
| Radiated RF immunity, IEC 61000-4-3 with 1 kHz sine-wave 80% AM from 80 – 2000 MHz | 20 Kg/Km |
| Radiated RF immunity, IEC 61000-4-3 with 200 Hz 50% pulse 100% AM at 900 MHz | 10 Kg/Km |
| Shock, non-operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 30 g |
| Shock, operating, IEC 60068-2-27 (test Ea, unpackaged shock) | 15 g |
| Surge transient immunity, IEC 61000-4-5, line-earth (CM) on Ethernet ports | ±2 kV |
| Temperature, operating, IEC 60068-2-1 (test Ad, operating, cold) | -40 °C |
| Temperature, operating, IEC 60068-2-14 (test Nb, operating, thermal shock) | -40 °C |
| Temperature, operating, IEC 60068-2-2 (test Bd, operating, dry heat) | -40 °C |
| Emissions | IEC 61000-6-4 |
| Conducted RF immunity, IEC 61000-4-6 with 1 kHz sine-wave 80% AM from 150 kHz – 80 MHz (rms) | 10 V |
