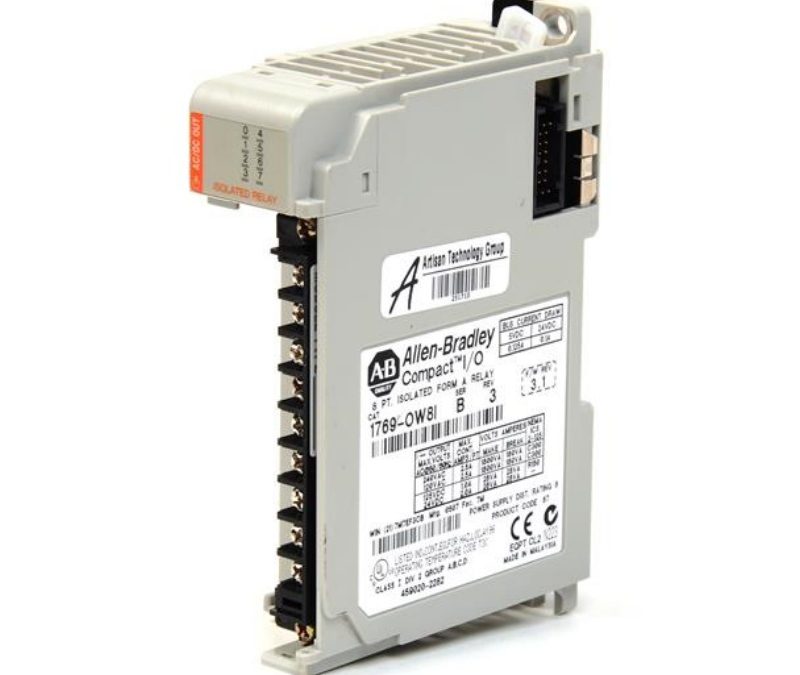

1769-OW8I Allen-Bradley CompactLogix 8 Pt D/O Relay Iso Module
Model: 1769-OW8I Allen-Bradley CompactLogix 8 Pt D/O Relay Iso Module
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for 1769-OW8I
| Manufacturer | Rockwell Automation / Allen-Bradley |
|---|---|
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-OW8I |
| Product Family: | Compact I/O |
| Product Line | CompactLogix |
| Product Type: | Discrete Output Module |
| Module Type | Output Module |
| No. of outputs: | Eight (8) Individually Isolated |
| Input Type | Relay Output |
| Power Supply Distance rating: | 8 |
| I/O Type | Contact |
| Compatible controllers: | MicroLogix 1500; CompactLogix controllers |
| Communication Cable | 8 Point |
| Voltage Category: | AC/DC normally open relay |
| Shipping Weight | 2 pounds |
| Operating Voltage range: | 5 to 265V ac 5 to 125V dc |
| Shipping Dimensions | 8 x 8 x 5 inches |
| Signal delay, On: | 10 ms |
| Series | A and B |
| Wire Type | Copper 90 degrees |
| Bus Current draw, 5.1 V: | 125 mA |
| Solid Wire Size | 22 to 14 AWG |
| Bus Current draw, 24 V: | 100 mA |
| Stranded Wire Size | 22 to 16 AWG |
| Heat Dissipation: | 2.83 Watts |
| UPC | 10662468992913 |
| Slot width: | 1 |
| UNSPSC | 32151705 |
| Mounting: | DIN Rail or Panel Mount |
| Dimensions: | 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.) |
| Power Supply: | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Wire Size: | (22…14 AWG) solid (22…16 AWG) stranded |
