Allen-Bradley

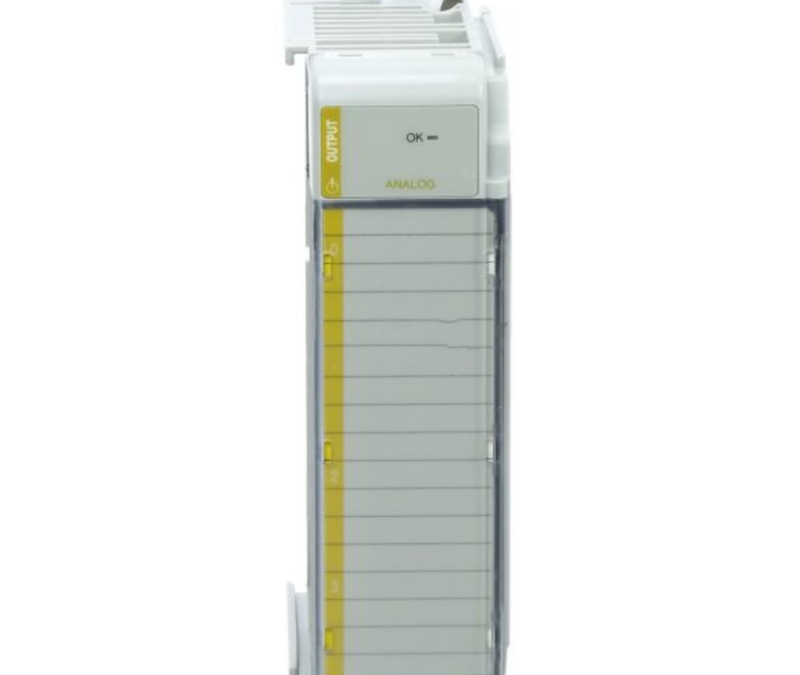

1769-OF4 Allen-Bradley Analog Ouput Module
Model: 1769-OF4 Allen-Bradley Analog Ouput Module
Manufacturers Allen-Bradle…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Allen-Bradley
Model(s)
Allen-Bradley Module
- Outputs: 4 single-ended
- Resolution: 15-bit plus unipolar and bipolar
- Maximum heat dissipation: 2.86 W
- Current consumption at 5.1V: 120 mA
- Slew rate (all channels), maximum: without interrupts enabled: 2.5 ms, with interrupts enabled: 3.8 ms
- Rated working voltage: 30V AC/30V DC
- Isolation voltage: 510V AC or 720V DC for 1 minute (qualification test), output group pair busbar 30V AC/30V DC working voltage (IEC Class 2 reinforced insulation)
- Power distance rating: 8 modules
- Groove width: 1″
- Dimensions(L x W x H ):15.2 cm x 12.7 cm x 10.2 cm
- Weight：0.3kg
- Country of Origin:Malaysia
