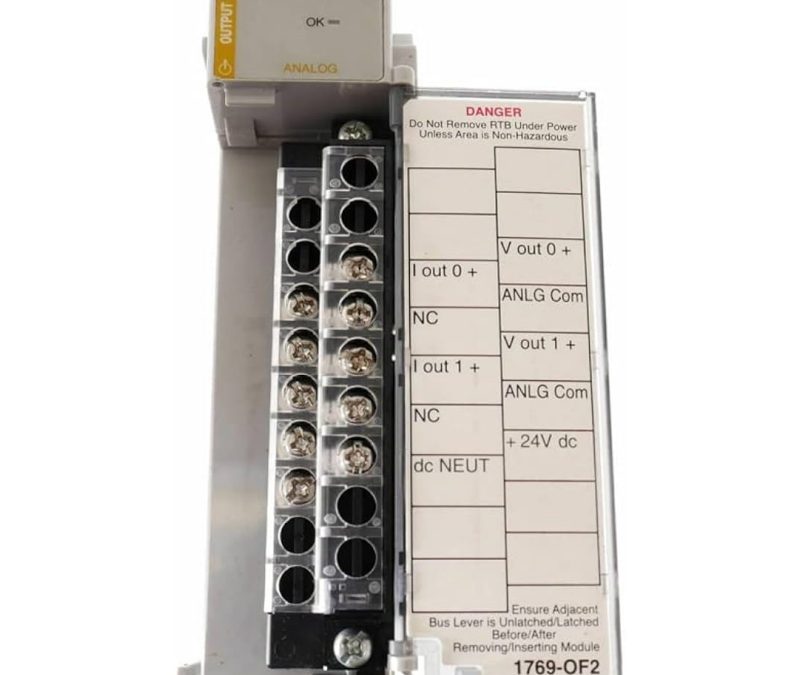

1769-OF2 Allen-Bradley Voltage Analog Output
Model: 1769-OF2 Allen-Bradley Voltage Analog Output
Manufacturers Allen-Bradle…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Allen-Bradley
Model(s)
Allen-Bradley Module
- Outputs : 2 single-ended
- Converter type : Delta Sigma
- Resolution : 14 bits (unipolar), 14 bits plus sign (bipolar)
- Heat dissipation, max : 2.63 W
- Current draw @ 5.1V : 120 mA
- Conversion rate (all channels), max : 2.5 ms
- Rated working voltage : 30V AC/30V DC
- Isolation voltage : 500V AC or 710V DC for 1 min (qualification test), output group to bus 30V AC/30V DC working voltage (IEC Class 2 reinforced insulation)
- Module location : DIN rail or panel mount
- Dimensions (HxWxD), approx : 11.8 x 3.5 x 8.7 cm
- Power supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
- Power supply distance rating : 8 modules
- Slot width : 1″
- Dimensions(L x W x H ):4.1 cm x 14.0 cm x 8.9 cm
- Weight：0.2kg
- Country of Origin: Japan
