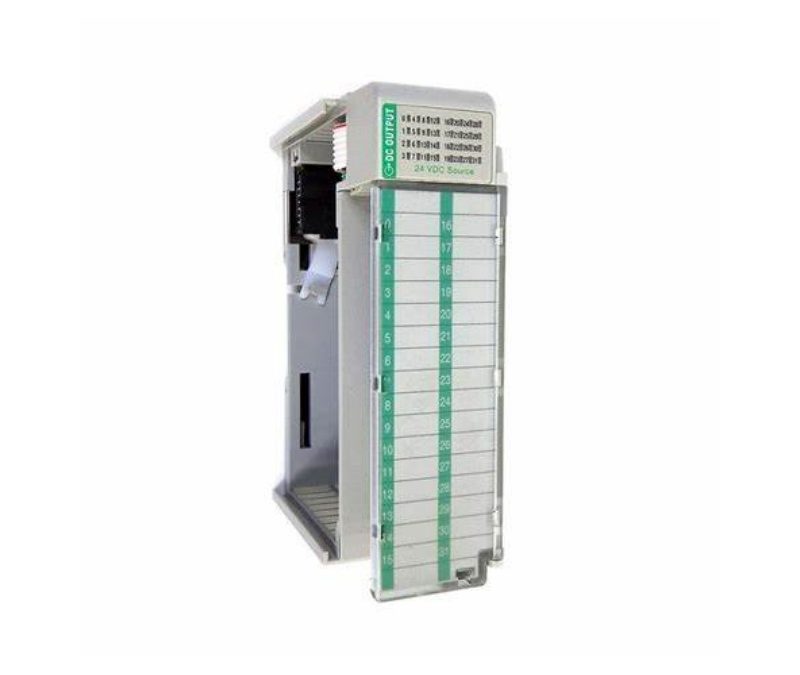

1769-OB32T Rockwell Compact I/O module
Model: 1769-OB32T Rockwell Compact I/O module
Mounting DIN Rail Enclosur…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Mounting | DIN Rail |
| Enclosure | Open-type |
| Power Supply Distance rating | 8 |
| Max. continuous output current per module | 4. 0A |
| Max. continuous output current per point: | 2.0 A |
| ON state Voltage, nom: | 24VDC |
| ON state Voltage, max. | 26.4 VDC |
| ON state Voltage, min: | 10.2 VDC |
| Compatible controllers | 1769 CompactLogix; MicroLogix 1500 |
| Number of Outputs: | 32 |
| Module Description | 32-channel sourcing output module |
| Product family | 1769 Compact IO |
| Operating Temperature: | 0 to 60 C (32 to 140 F) |
| Storage Temperature: | -40 to 85 C (-40 to 185 F) |
| Vibration: | 5g @ 10 to 500 Hz |
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Operating Shock: | 30 g |
| Part Number/Catalog No. | 1769-OB32T |
| Product Line | CompactLogix |
| Module Type | DC Output Module |
| Input Type | Digital Output |
| Communication Cable | 32 Point |
| Shipping Weight | 2 lbs. |
| Shipping Dimensions | 8X8X5 in. |
| Series | A and B |
| Wire Size (Stranded) | 22-16 AWG |
| Replacement Terminal Block | 1769-RTBN18 |
| Replacement Door | 1769-RD |
| UPC | 10662074455352 |
| UNSPSC | 32151705 |
