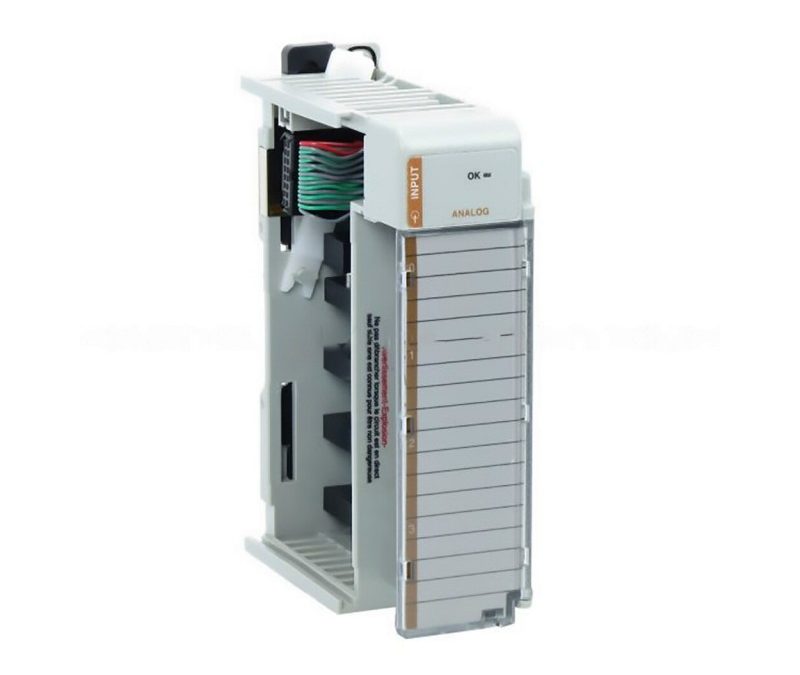

1769-IF4I Allen-Bradley Analog Input
Model: 1769-IF4I Allen-Bradley Analog Input
Manufacturers Allen-Bradle…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Allen-Bradley
Model(s)
Allen-Bradley Module
- Product type : Analog Input
- Input : 4 isolated differential
- Bus current draw : 5V DC, 140 mA, 24V DC, 110 mA
- Heat dissipation, max : 3.0 W
- Converter type : Delta Sigma
- Resolution : 16 bits (unipolar), 15 bits plus sign (bipolar)
- Rated working voltage : 30V AC/30V DC
- Common mode voltage range : ±10V DC max per channel
- Accuracy : Voltage: ±0.2% full scale @ 25 °C (77 °F), Current: ±0.35% full scale @ 25 °C (77 °F)
- Nonlinearity : ±0.03%
- Repeatability : ±0.03%
- Isolation voltage : 500V AC or 710V DC for 1 minute (qualification test), group to bus 30V AC/30V DC working voltage (IEC Class 2 reinforced insulation) 500V AC or 710V DC for 1 minute or 250V continuous (optical and magnetic), channel to rack and channel to channel.
- Module location : DIN rail or panel mount
- Power supply: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
- Power supply distance rating : 8 modules
- Replacement terminal block : 1769-RTBN18 (1 per kit)
- Dimensions(LxWxH) :5.1 cm x 10.2 cm x 17.8 cm
- Weight :0.2kg
- Country of Origin:Malaysia
