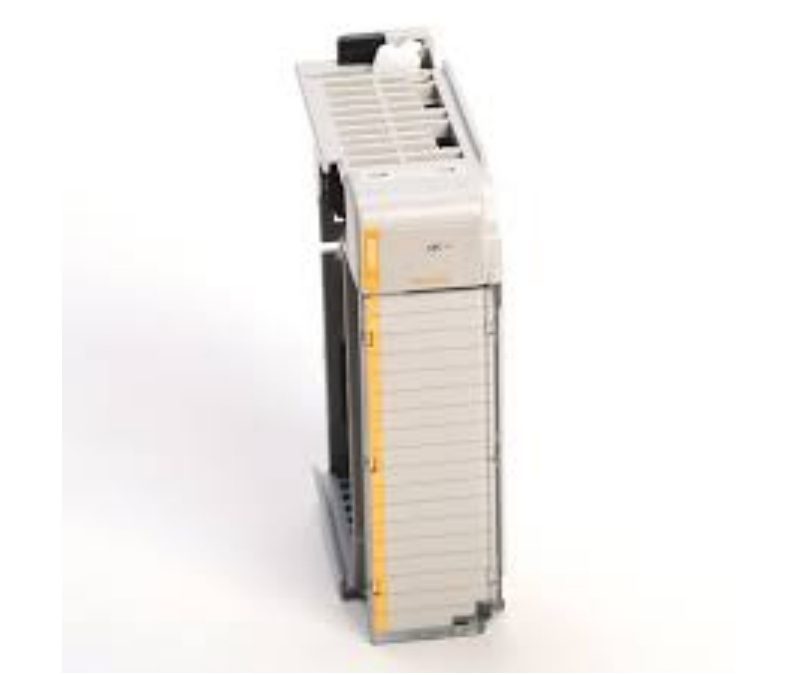

1769-0F8V Allen Bradley CompactLogix 8 Pt A/O Voltage Module
Model: 1769-0F8V Allen Bradley CompactLogix 8 Pt A/O Voltage Module
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for 1769-OF8V
| Manufacturer | Rockwell Automation / Allen-Bradley |
|---|---|
| Product Family: | Compact I/O modules |
| Product Type: | Analog Output Module |
| No. of Outputs: | Eight (8) Single Ended |
| Compatible Controllers: | MicroLogix 1500; CompactLogix |
| Power Supply Distance rating: | 8 |
| Analog Ranges: | ± 10V dc, 0 to 10V dc, 0 to 5V dc, 1 to 5V dc |
| Full scale analog ranges: | ± 10.5V dc, -0.5 to 10.5V dc, -0.5 to 5.25V dc, 0.5 to 5.25V dc |
| Analog data format: | Raw / Proportional data, Engineering unit, Scaled for PID and Percent full range. |
| Bus Current Draw (max.): | 5V DC, 145 mA 24V DC, 135 mA |
| Conversion rate: | 5 ms |
| Digital resolution: | 16 bits plus sign (bipolar) ±10V DC: 15.89 bits, 330 ?V/bit 0…10V DC: 14.89 bits, 330 ?V/bit 0…5V DC: 13.89 bits, 330 ?V/bit 1…5V DC: 13.57 bits, 330 ?V/bit |
| Calibration: | None required (guaranteed by hardware design) |
| Overall accuracy: | ±0.5% full scale @ 25 °C (77 °F) |
| Slot width: | 1 |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-OF8V |
| Product Line | CompactLogix |
| Module Type | Analog Voltage Output Module |
| Input Type | Output Voltage |
| Communication Cable | 8 Point |
| Shipping Weight | 2 lbs. |
| Shipping Dimensions | 8 x 8 x 5 in. |
| Series | A and B |
| Outputs | 8 Single-Ended |
| Output Range | 0-10 Volts |
| Enclosure | Open |
| Wire Type | Copper-90? |
| Solid Wire Size | 22?14 AWG |
| Stranded Wire Size | 22?16 AWG |
| UPC | 10662468861387 |
