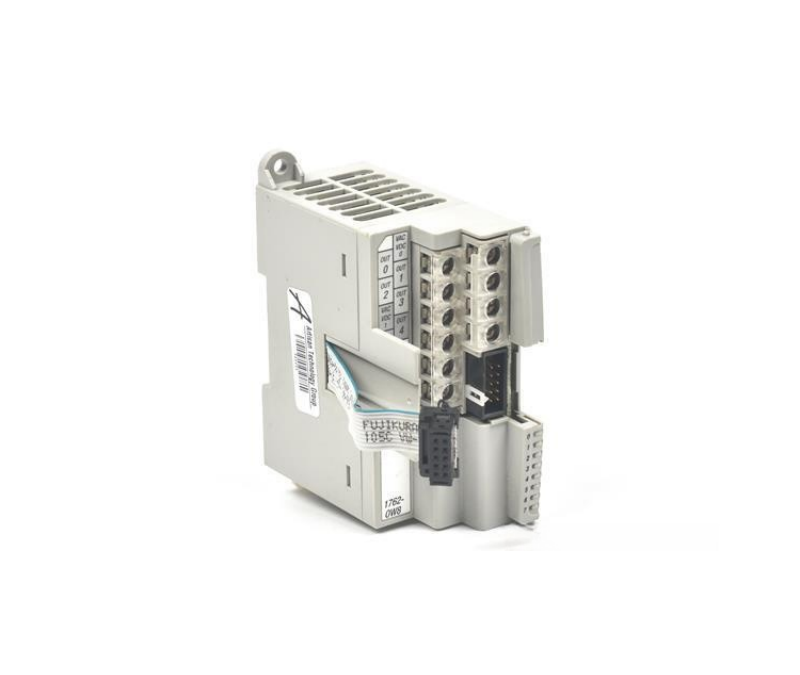

1762-OW8 Allen-Bradley Relay Output Module
Model: 1762-OW8 Allen-Bradley Relay Output Module
Manufacturers Allen-Bradle…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Allen-Bradley
Model(s)
Allen-Bradley Module
- Product Type : Relay Output Module
- Temperature, nonoperating : -40…85 °C (-40…185 °F)
- Temperature, operating : 0…55 °C (-32…131 °F)
- Operating humidity : 5…95% non-condensing
- Operating altitude : 2000 m (6561 ft)
- Radiated and Conducted Emissions : EN50081-2 Class A
- ESD Immunity (IEC1000-4-2) : 4 kV contact, 8 kV air, 4 kV indirect
- Radiated Immunity (IEC1000-4-3) : 10 V/m, 80 to 1000 MHz, 80% amplitude modulation, +900 MHz keyed carrier
- Fast Transient Burst (IEC1000-4-4) : 2 kV, 5 kHz
- Surge Immunity (IEC1000-4-5) : 2 kV common mode, 1 kV differential mode
- Conducted Immunity (IEC1000-4-6) : 10V, 0.15…80 MHz
- Operating voltage range : 5…265V AC, 5…125V DC
- Number of outputs : 8
- Heat dissipation (max.) : 2.9 Total Watts
- Power supply distance rating : 6
- Dimensions(LxWxH) :8.7 cm x 4 cm x 11 cm
- Weight :0.228kg
- Country of Origin:Malaysia
