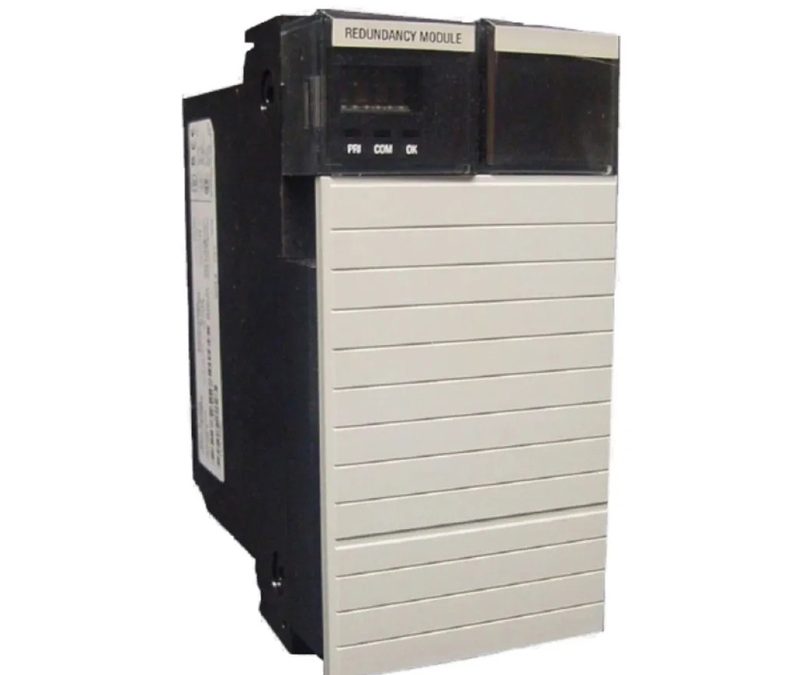

1756-SRM Allen Bradley Control Logix Redundancy Module

Manufacturer Rockwell Automation
Part Number 1756-SRM
Brand Allen-Bradley
Series ControlLogix; ProcessLogix
Backplane current 0.160 A at 24V DC
Part Number/Catalog No. 1756-SRM
Weight, approx. 0.452 kg (14.53 oz)
Mounting ControlLogix chassis
Module Type System Redundancy Module
Connector SC Type
Enclosure type rating None (open-style)
Cable Type 62.5/125-micron multi-mode fiber-optic cable
Power dissipation, max 11.28 W
Supported Controllers Logix 5560
Thermal dissipation, max 38.49 BTU/hr
Slot Width 2
Connector Cables 1757-SRC1, 1 m (3.28 ft); 1757-SRC3, 3 m (9.84 ft); 1757- SRC10, 10 m (32.81 ft); 1757-SRC50, 50 m (164.04 ft); 1757- SRC100, 100 m (328.08 ft)
Temperature, operating 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
UNSPSC 32151705
Wavelength 1300 nm
Channels 1 (transmit and receive fiber)
Dimensions 14.5 x 7 x 14 cm (5.71 x 2.76 x 5.51 in.)
Operating Temperature 32-140 Fahrenheit (0-60 Celsius)
Enclosure None
