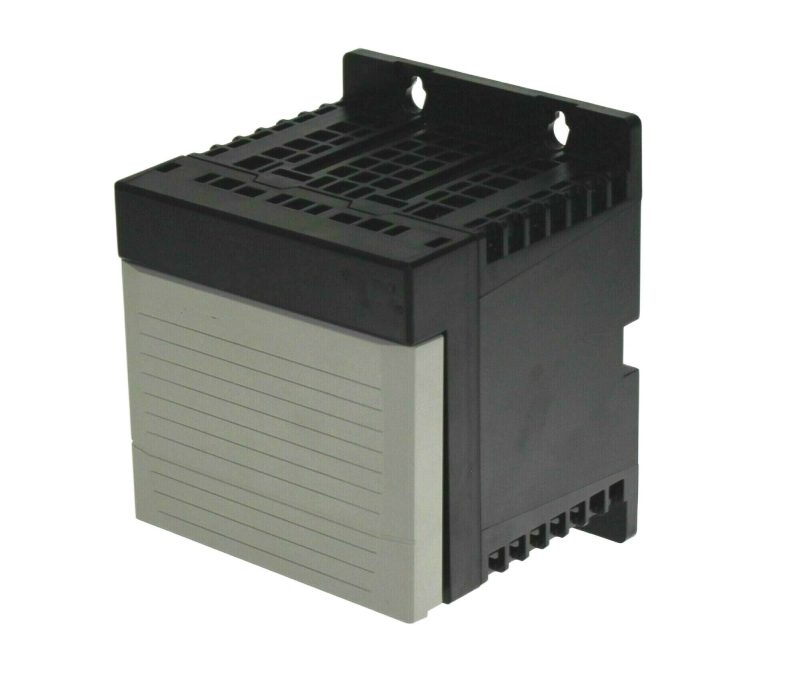

1756-PA75R Allen-Bradley Redundant Power Supply
Model: 1756-PA75R Allen-Bradley Redundant Power Supply
Manufacturers Allen-Bradle…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Allen-Bradley
Model(s)
Allen-Bradley Module
- Product type : Redundant Power Supply
- Input voltage range : 85…265V AC
- Input voltage : 120V/240V AC, 50/60 Hz
- Input frequency : range 47…63 Hz
- Input power, max : 120VA 115 W
- Output power, max : 75 W @ 0…60 °C (32…140 °F)
- Inrush current, max : 20 A
- Annunciator power : 240V AC 50/60 Hz, 240V DC, 50 mA, resistive only
- Isolation voltage : 250V (continuous), Reinforced Insulation Type, Power Input to Backplane, Power Input to Annunciator, Annunciator to Backplane Type
- tested at 3250V DC for 60 s
- Wire size : Power : 2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 °C (194 °F), or greater, 1.2 mm (3/64 in.) insulation max. Annunciator: 0.25…
- 2.5 mm2 (22…14 AWG) solid or stranded copper wire rated at 90 °C (194 °F), or greater, 1.2 mm (3/64 in.) insulation max.
- Wire category : 3 – on annunciator ports, 1 – on power ports, 3 – on 1756-CPR2 connections.
- Conductor screw torque : 0.565 N•m (5 lb•in)”
- Dimensions(LxWxH):13.8 cm x 17.8 cm x 13.3 cm
- Weight：1.6kg
- Country of Origin: United State
