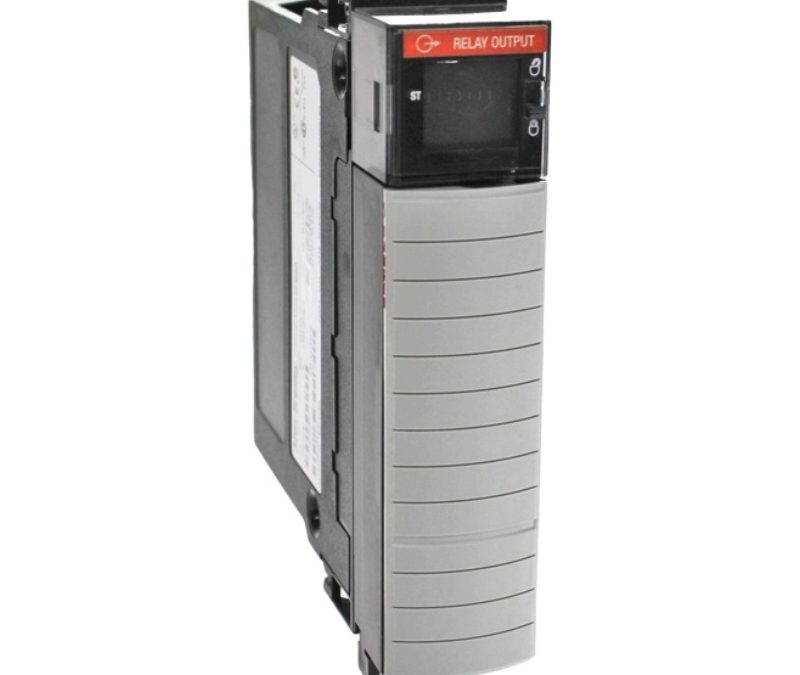

1756-OX8I Allen Bradley ControlLogix
Model: 1756-OX8I Allen Bradley ControlLogix
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for 1756-OX8I
| Manufacturer | Rockwell Automation |
|---|---|
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-OX8I |
| Series | ControlLogix |
| Outputs | 8-Point Individually Isolated |
| Module Type | Isolated Relay Output Module |
| Output Current | 2, 0.5, 0.25 Amps |
| Contact Output | Form C contacts |
| Operating Voltage | 10-265 Volts AC, 5-150 Volts DC |
| Initial Contact Resistance | 100 m? @ 6V 1 A |
| Maximum Switching frequency | 1 operation/3 s (0.3 Hz at rated load) |
| Mean Bounce Time | 1.2 ms |
| Removeable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Maximum Output Delay Time | 13 milliseconds |
| Expected contact life | 300 kHz resistive; 100 kHz inductive |
| Backplane Current at 5 Volts | 100 mA |
| Power Dissipation (Max) | 3.1 Watts at 60 Celsius |
| UPC | 10612598171474 |
| UNSPSC | 32151705 |
| Enclosure | None |
| Isolation Voltage | 250V (continuous), basic insulation type, outputs-to- backplane, and output-to-output |
