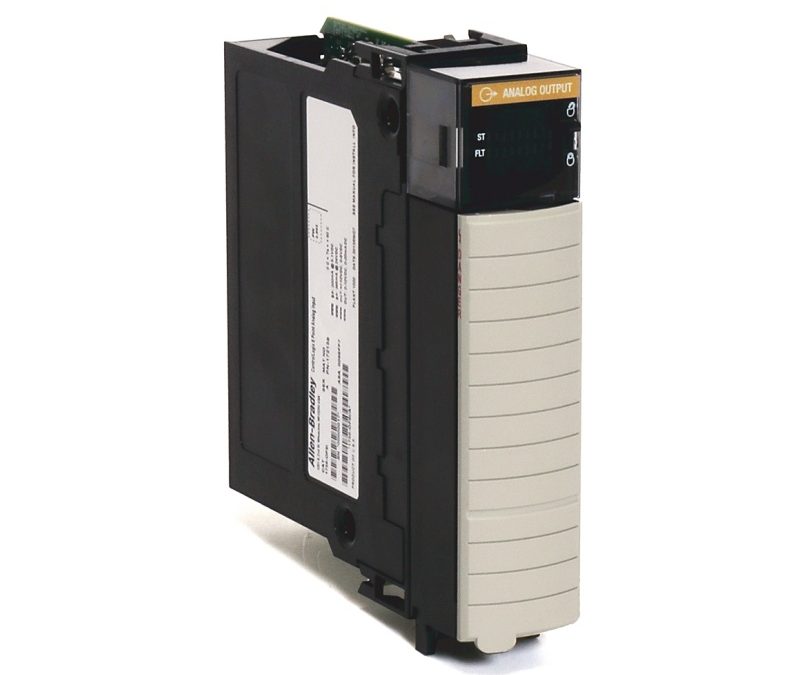

1756-OF8I Allen Bradley ControlLogix Analog Output Module
Model: 1756-OF8I Allen Bradley ControlLogix Analog Output Module
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for 1756-OF8I
Manufacturers
Allen-Bradley
Allen-Bradley
Model(s)
Allen-Bradley ControlLogix
Allen-Bradley ControlLogix
Additional Information
ControlLogix Analog Output Module, Current/Voltage, 8 Isolated Points
Estimated Shipping Size
Dimensions: 1.5″ x 5.8″ x 5.5″
(3.8 cm x 14.6 cm x 14.0 cm)
Weight: 0 lbs 8.0 oz (0.2kg )
Tariff Code: 8538907080
Country of Origin: United States
Ships from Webster NY, USA
Ships from Webster NY, USA
| Manufacturer | Rockwell Automation |
|---|---|
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-OF8I |
| Series | ControlLogix |
| Outputs | 8 Current |
| Module Type | Isoloated Analog Output Module |
| Current Draw (24 Volts DC) | 400 milliamps |
| No. of Outputs | Eight (8) Current / Voltage |
| Power Dissipation | 6.5 Watts |
| Output Current Range | 0-20 mA; 4-20 mA |
| Output Range | 0-20 or 4-20 milliamps |
| Output Voltage Range | 10…10V; 0…10V; 0…5V |
| Resolution | 15 bits |
| esolution | 16-Bit |
| Data Format | IEEE 32-bit floating point |
| Removeable Terminal Block(s) | 1756-TBNH, 1756-TBSH |
| Conversion Method | R-Ladder DAC, monotonicity with no missing codes |
| Isolation Voltage | 50 Volts Continuous |
| Removable Terminal Block(s) | 1756-TBCH, 1756-TBS6H |
| Open circuit detection | Current only |
| Short circuit detection | Voltage only |
| Overvoltage protection | ±30V DC (voltage/current) |
| Enclosure | None |
