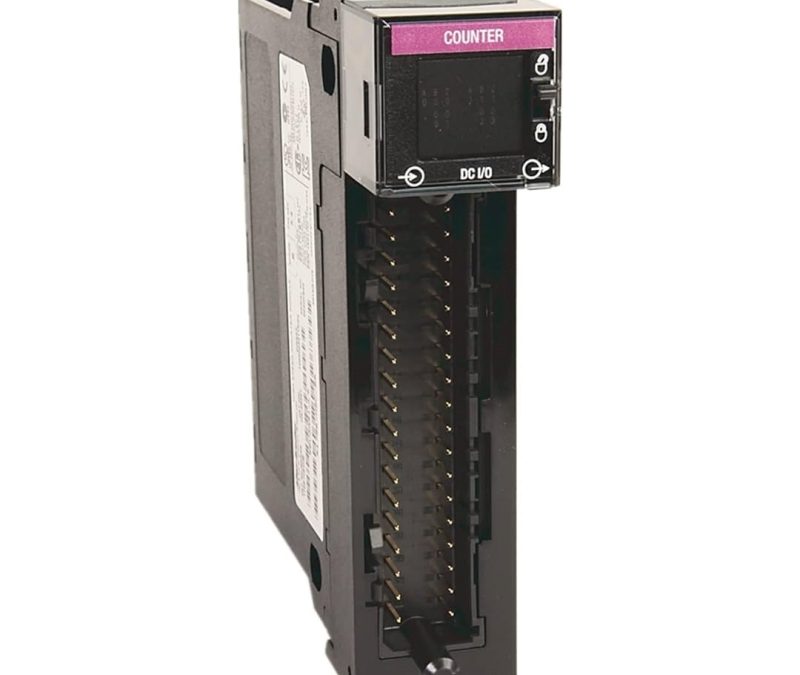

1756-HSC Allen-Bradley ControlLogix High-speed Counter Module
Model: 1756-HSC Allen-Bradley ControlLogix High-speed Counter Module
Manufacturers Allen-Bradle…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Allen-Bradley
Model(s)
Allen-Bradley Module
- Product Type: ControlLogix High-Speed Counter Module
- Module location: 1756 ControlLogix chassis
- Backplane current: 300mA @ 5.1V dc, 3mA @ 24V dc (1.6 W)
- Maximum power consumption: 5.6 W @ 60°C
- Thermal dissipation: 19.1 BTU/hour
- Number of counters: 2
- Inputs per counter: 3 (A, B, Z for gate/reset)
- Count range: 0 – 16,777,214
- Number of outputs: 4 (2 outputs/common)
- Output Control: Any number of outputs can be assigned to each counter channel. Each output can have 2 On and Off presets.
- Maximum on-state voltage drop/output: 0.55V
- Current limit: <4A
- Dimensions(L x W x H ):3.8 cm x 14.6 cm x 14.0 cm
- Weight：0.2kg
- Country of Origin: United States
