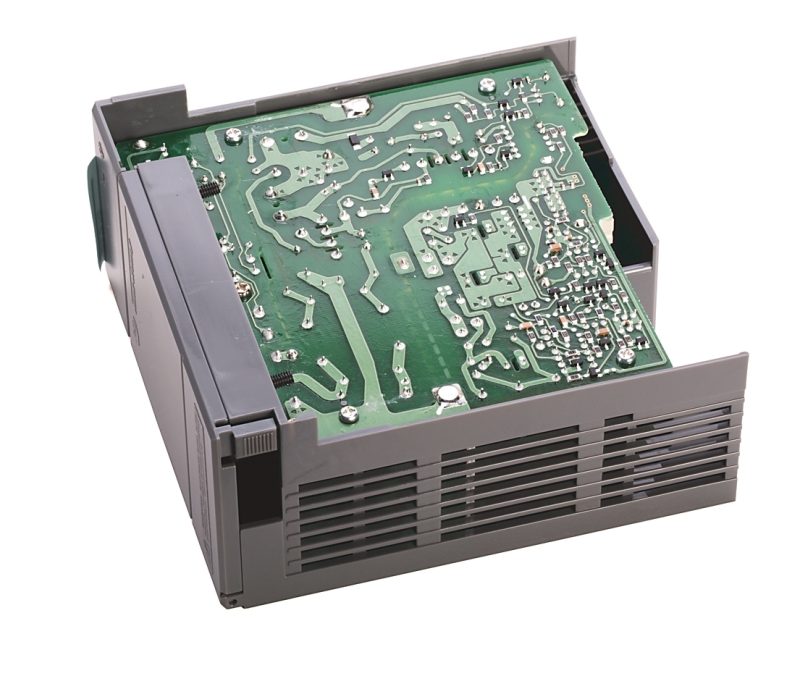

1746-P3 ALLEN BRADLEY PLC Module/Rack
Model: 1746-P3 ALLEN BRADLEY PLC Module/Rack
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for 1746-P3
| Manufacturer | Rockwell Automation |
|---|---|
| Location | 1746 Chassis, Left Side |
| Input Voltage Range | 19.2-28.8 VDC |
| Module Type | Power Supply |
| Series | SLC 500 |
| Part Number/Catalog No. | 1746-P3 |
| Brand | Allen-Bradley |
| Nom Input Voltage | 24VDC |
| Typical line power requirement | 90 VA |
| Inrush Current | 20 A |
| Isolation Voltage | 600V ac RMS for 1 s (version B or later) |
| Current Capacity | 3.6 A at 5V dc and 0.87 A at 24V dc |
| Hold Up time | 5 ms (full load); 1000 ms (no load) |
| Fuse protection | 1746-F3 or equivalent |
| Temperature, ambient operating | 0…60 °C (32…140 °F) |
| Current capacity deration | 5% above 55 °C (131 °F). |
| Input Voltage | 24 Volts DC |
| Input Power | 61 Watts |
| Backplane Current (5 Volts) | 3.6 Amps |
| Backplane Current (24 Volts) | 0.87 Amps |
| Frequency | DC |
| Weight | 2.5 pounds (1.1 kilograms) |
| Dimensions | 5.5 x 2.9 x 5.7 inches |
| Operating Temperature | 0 to 60 degrees Celsius |
