Allen-Bradley

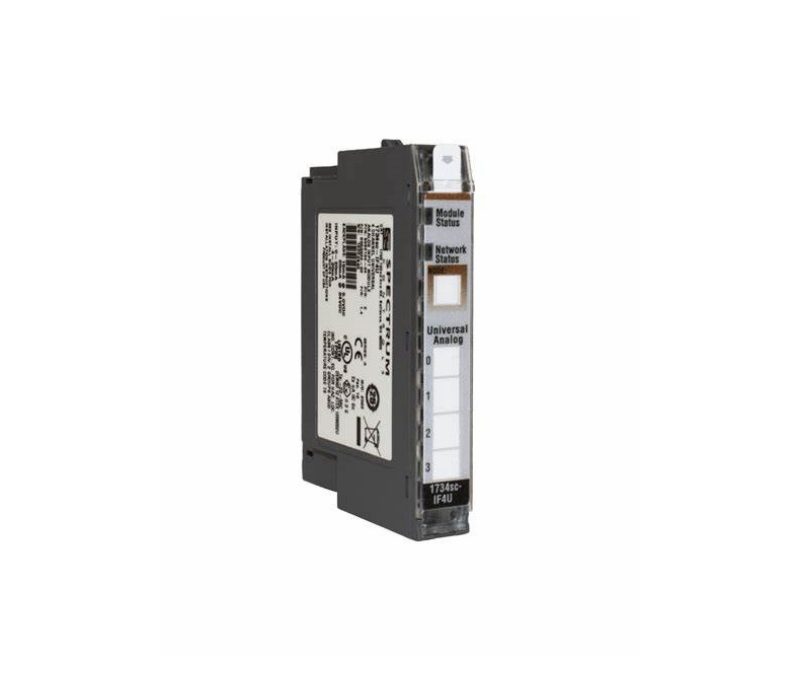

1734sc-IF4U Allen-Bradley I/O Module
Model: 1734sc-IF4U Allen-Bradley I/O Module
Brand Allen-Bradley Compat…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Brand | Allen-Bradley |
| Compatible Series | 1734 Point I/O |
| Electrical Isolation: | 50 VDC field-wiring-to-backplane; 50 VDC field-wiring-to-chassis-ground; 10 VDC channel-to-channel isolation. |
| HART variables: | PV, SV, TV, FV |
| HART Compatible: | Yes |
| Data Format: | Engineering Unit |
| Sampling Time: | 488 ms at 50/60 Hz to 33 ms at 480 Hz |
| Accuracy: | Better than 0.1% of range at 0 °C to 25 °C |
| Compatible Current signal | 4-20 mA |
| Slot Width | Single slot |
| No. of Inputs | Four (4) analog inputs |
| Part Number/Catalog No. | 1734SC-IE4CH |
| Manufacturer | Spectrum Controls |
| Input Impedance | 250 Ohm, typical; |
| Resolution | 16-bit |
| Product Type | Input Module |
| Rockwell Compatible Series | Point IO |
| Channels | 4 |
| Input Type | Analog + HART |
| Input Overcurrent Protection | 28 mA cont. |
| Thermal Dissipation | 1 W min. |
