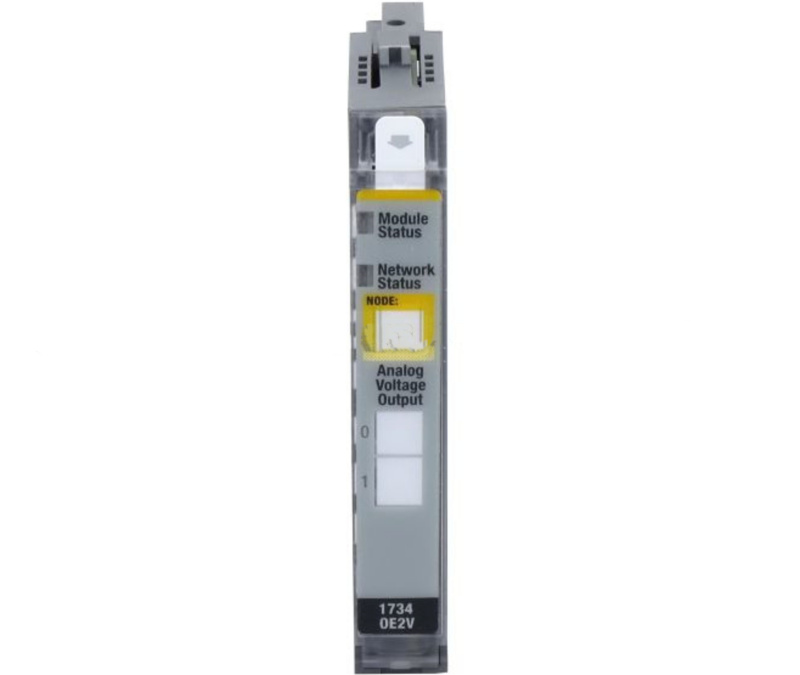

1734-OE2V Allen-Bradley voltage output analog module
Model: 1734-OE2V Allen-Bradley voltage output analog module
Manufacturers Allen-Bradle…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Allen-Bradley
Model(s)
Allen-Bradley Module
- Product Type: POINT I/O 2 Voltage Output Analog Module
- Number of outputs: 2 single-ended, non-isolated, voltage
- Resolution: 14 bits (13 plus signs) 1.28mV/cnt (unipolar or bipolar mode)
- Output voltage: 0V output until communication is established 0…10V (user configurable) (-0.0V below, +0.5V above) +10V user configurable (-0.5V below, +0.5V above)
- Terminal Block: 1734-TB, 1734-TBS, 1734-TB3, 1734-TB3S, 1734-TOP, or 1734-TOPS terminal block assembly
- POINTBus current, maximum: 75 mA @5V DC
- Maximum power consumption: 1.0 W
- Maximum heat dissipation: 3.4BTU/hour
- Isolation voltage (continuous withstand voltage rating): 50V Continuously tested, withstands 2200V DC for 60 seconds No isolation between channels
- Key switch position: 4
- Dimensions(L x W x H ):7.55cm x 1.2cm x 5.6cm
- Weight：0.1kg
- Country of Origin:Singapore
