Allen-Bradley

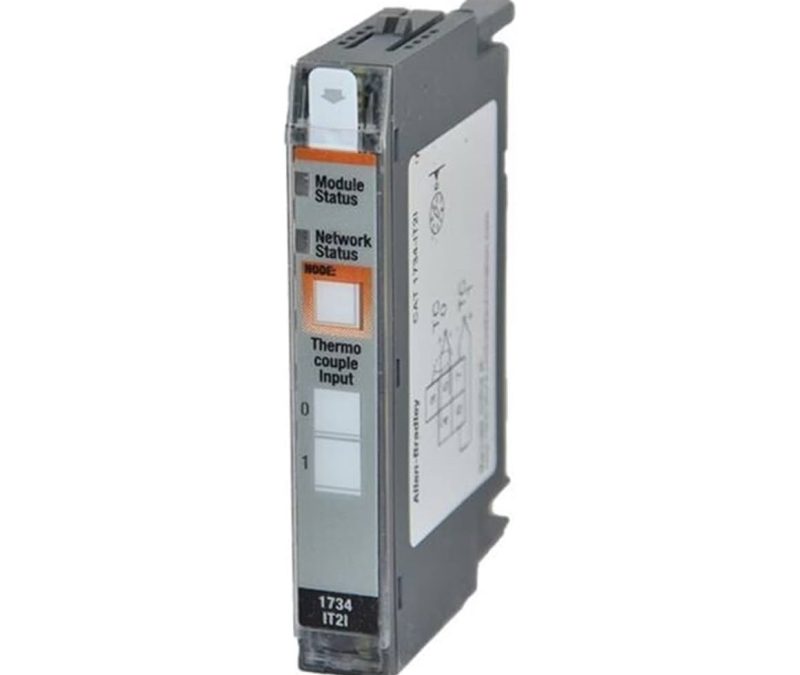

1734-IT2I Allen Bradley POINT I/O Isolated Thermocouple Input Module
Model: 1734-IT2I Allen Bradley POINT I/O Isolated Thermocouple Input Module
Manufacturers Allen-Bradle…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Allen-Bradley
Model(s)
Allen-Bradley Module
- Product type : POINT I/O Isolated Thermocouple Input Module
- Number of inputs : 2 differential, individually isolated
- Resolution : 15 bits plus sign 2.5 µV/cnt
- Cold junction compensation : Included in 1734-RTBCJC remote termination block.
- Cold junction compensation range : 0…70 °C (32…158 °F)
- Input voltage : ±75 mV
- Absolute accuracy : 0.1% Full Scale @ 25 °C (77 °F)
- Accuracy drift with temp. : 30 ppm/°C
- Input impedance : 100 KO
- Input resistance : 1 MO
- Conversion type : Delta Sigma
- Terminal base screw torque : 0.8 Nm (7 lb-in.)
- Module location : 1734-IT2I – 1734-TBCJC wiring base assembly
- POINTBus current, max @ 5V DC : 175 mA
- Power dissipation, max : 1.0 W
- Thermal dissipation, max : 3.3 BTU/hr
- Isolation voltage : 50V (continuous), Basic Insulation Type, I/O to system. Type tested @ 1600V AC for 60 s.
- Dimensions(L x W x H ):7.55cm x 1.2cm x 5.6cm
- Weight：0.1kg
- Country of Origin: Singapore
