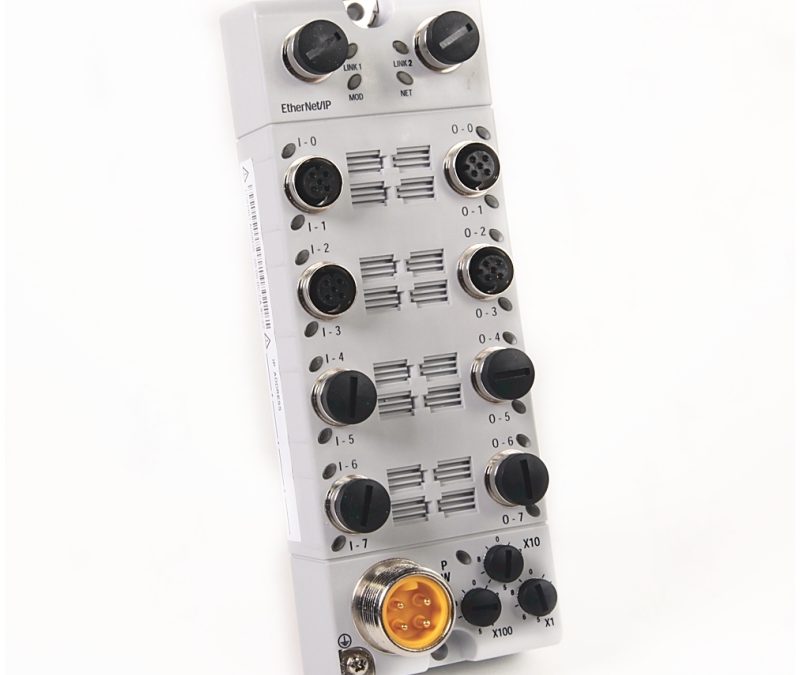

1732E-16CFGM12R Allen-Bradley 2-port EtherNet/IP Modules
Model: 1732E-16CFGM12R Allen-Bradley 2-port EtherNet/IP Modules
Technical specifications f…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical specifications for 1732E-16CFGM12R
| Brand | Allen-Bradley / Rockwell Automation |
|---|---|
| Series | 1732 ArmorBlock |
| Manufacturer: | Rockwell Automation |
| Manufacturer | Rockwell Automation |
| Part Number | 16 channel 24V DC self-configurable I/O ArmorBlock module |
| Brand: | Allen-Bradley |
| Brand | Allen-Bradley |
| Inputs | 16 |
| Product Family: | ArmorBlock I/O |
| Part Number/Catalog No. | 1732E-16CFGM12R |
| Outputs | 16 |
| Bulletin Number: | 1732E |
| Series | ArmorBlock |
| Input Type | Sink, 24 Volts |
| No. of I/Os | 16 I/Os |
| Module Type | 2-port adapter modules |
| Output Type | Source, 24 Volts |
| Output protection | Individually fused outputs |
| No. of discrete channels | Sixteen (16) |
| Operating Temperature Range | -4 to 140 Degrees Fahrenheit |
| No. of Ethernet port | Two (2) Ethernet ports |
| Input wiring configuration | Sinking |
| Storage Temperature Range | -40 to 185 Degrees Fahrenheit |
| Transmission speed | 10/100 mbps |
| Input signal voltage | 24 VDC |
| Relative Humidity Range | 5 to 95% (Non-condensing) |
| Network connector | Dual D-code M12 |
| No of output channels | Sixteen (16) |
| Vibration Rating | 5 g @ 10-500 Hertz |
| Auxiliary Power connector | Single 4-pin mini |
| Output wiring configuration | Sourcing |
| Operating Shock Rating | 30 g |
| Input Voltage | 24VDC, sink |
| Output signal voltage | 24 VDC |
| Non-Operating Shock Rating | 50 g |
| Output Voltage | 24 VDC, source |
| Output current rating | 0.5 A |
| Emissions Rating | Group 1, Class A |
| Output current, channel | 0.5 A |
| Output current per module | 8.0 A |
| Maximum Off-State Input Voltage | 5 Volts |
| Output current, module | 8.0 A |
| No. of ethernet ports | Two (2) |
| Maximum On-State Input Voltage | 30 Volts |
| Supported transmission rate | 10/100 mbps |
| Weight | 0.34 kilograms (0.75 pounds) |
| Protection Rating | IP65/67/69K |
| Connectors | D-Code M12 connectors for ethernet I/P; M12 style I/O connectors for input and output connections; Mini-stye connectors for auxiliary power input |
| Dimensions (Approx.) | 179 x 65 x 43.25 millimeters (7.05 x 2.56 x 1.70 inches) |
| Enclosure type rating | IP65 / 67 |
| UPC | 10612598350107 |
