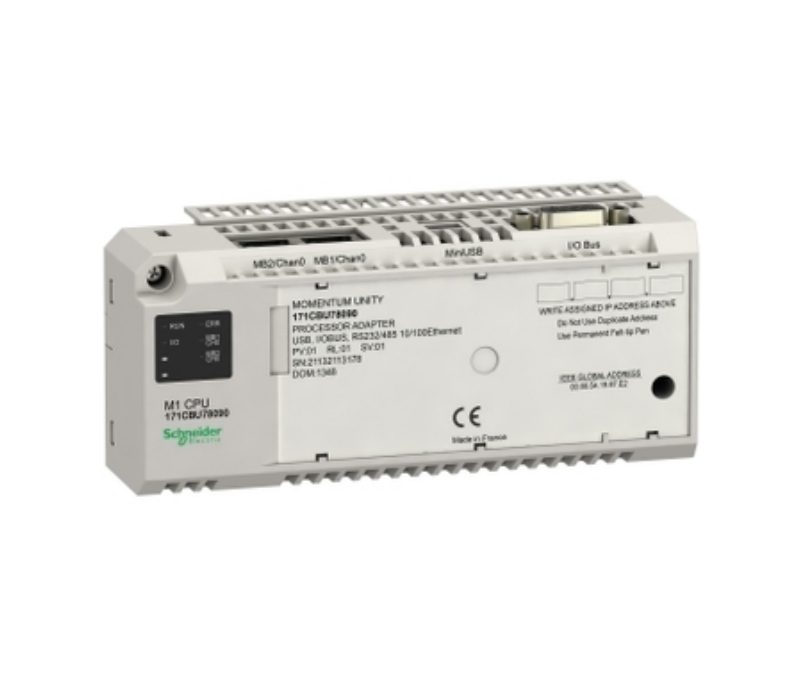

171CBU78090 Schneider Electric Processors
Model: 171CBU78090 Schneider Electric Processors
Main Range of Product Modi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Modicon Momentum automation platform |
|---|---|
| Product or Component Type | Processor |
| Integrated connection type | USB port |
| Concept | Transparent Ready class B |
|---|---|
| Web services | Home pages Properties CPU status |
| Software Designation | Unity Pro |
| Communication service | Modbus messaging 100 words, 200 I/O message per second |
| Processor name | Spear 320s |
| Word length | 32 bit |
| Supply voltage limits | 4.75…5.25 V |
| Clock frequency | 333 MHz |
| Topology | Multidrop Modbus |
| Communication port protocol | Modbus RS485/RS232 – 1 RJ45 19200 bps – 2-wire |
| Method of access | Master/slave |
| Control parameter | CRC-16 for Modbus |
| Addressing | 1…247 Modbus |
| Fail state | Safe I/O mode |
| Memory description | Program memory IEC 3584 kB Program memory LL984 3584 kB |
| Register words | 26048 |
| I/O limit processor capacity | 2048 inputs/2048 outputs |
| Number of devices | 32 Modbus |
| Exact time for 1 Kinstruction | 83 ns |
| Local signalling | for processor running (RUN) 1 LED (green) for processor or system fault (ERR) 1 LED (red) for I/O module fault (I/O) 1 LED (red) for channel 0 operating (CH0) 1 LED (yellow) for channel 1 operating (CH1) 1 LED (yellow) |
| Marking | CE |
| Current consumption | 500 mA 5 V DC |
| Module format | Standard |
| Product mounting | 35 mm symmetrical DIN rail |
| Height | 2.4 in (60.6 mm) |
| Width | 5.7 in (144 mm) |
| Depth | 2.11 in (53.47 mm) |
| Net Weight | 0.351 lb(US) (0.159 kg) |
| Material | Lexan |
|---|---|
| Dielectric strength | 0 V not isolated RS485/RS232 5000 V for 1 minute RS485 |
| Product Certifications | C-tick FM |
| Standards | EN/IEC 61131-2 CSA C22.2 No 142 UL 508 |
| IP degree of protection | IP20 |
| Shock resistance | 15 gn 11 ms sinusoidal vibrations |
| Resistance to electrostatic discharge | 6 kV contact EN/IEC 61131-2 zone B 6 kV contact IACS E10 8 kV on air EN/IEC 61000-4-2 |
| Resistance to electromagnetic fields | 13.7 V/m (15 V/m) 80…2700 MHz EN/IEC 61000-4-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 5…96 % |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Category | US1PC3118206 |
|---|---|
| Discount Schedule | PC31 |
| GTIN | 3595864171388 |
| Returnability | Yes |
| Country of origin | FR |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.953 in (7.500 cm) |
| Package 1 Width | 4.370 in (11.100 cm) |
| Package 1 Length | 8.071 in (20.500 cm) |
| Package 1 Weight | 8.325 oz (236.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 5.234 lb(US) (2.374 kg) |
