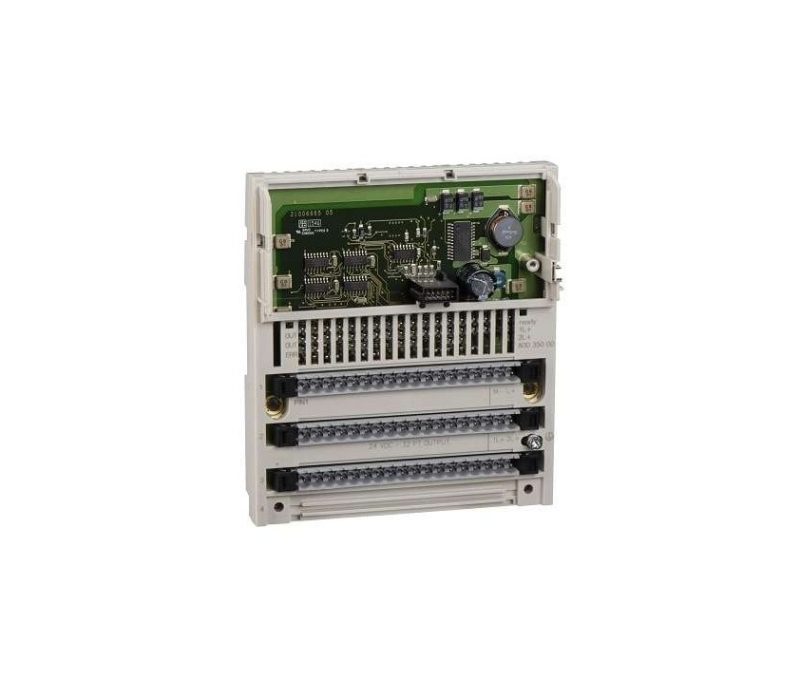

170ADI35000 Schneider Digital Input Module
Model: 170ADI35000 Schneider Digital Input Module
Manufacturers Schneider Mo…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Schneider
Model(s)
Schneider module
- Product Range: Modicon Momentum Automation Platform
- Product or Component Type: Discrete Input Basic DC
- Channel Group: 2 groups of 16 inputs
- Number of discrete inputs: 32 IEC 1131-2 Type 1
- Discrete input voltage: 24 VDC
- Protective treatment:TC
- Discrete Input Logic: Positive
- Input voltage limit: 24V
- Voltage range:- 3…30V
- Voltage status 0 Guaranteed: -3…5V
- Guaranteed voltage status 1:11…30 Volts
- Current status 0 Guaranteed: <= 1.2 mA
- Current status 1 Guaranteed:>= 2.5 mA
- Input resistance: 4 ohms
- Response time: from state 0 to state 1, 2.2 ms from state 1 to state 0 3.3 ms
- Channel and bus isolation: 500 VAC
- Power consumption: 5.5 W (typ.), 8.5 W (max.)”
- Dimensions(LxWxH):4.75 cm x 12.5 cm x 14.15 cm
- weight：0.2kg
- country of origin：France, Germany
