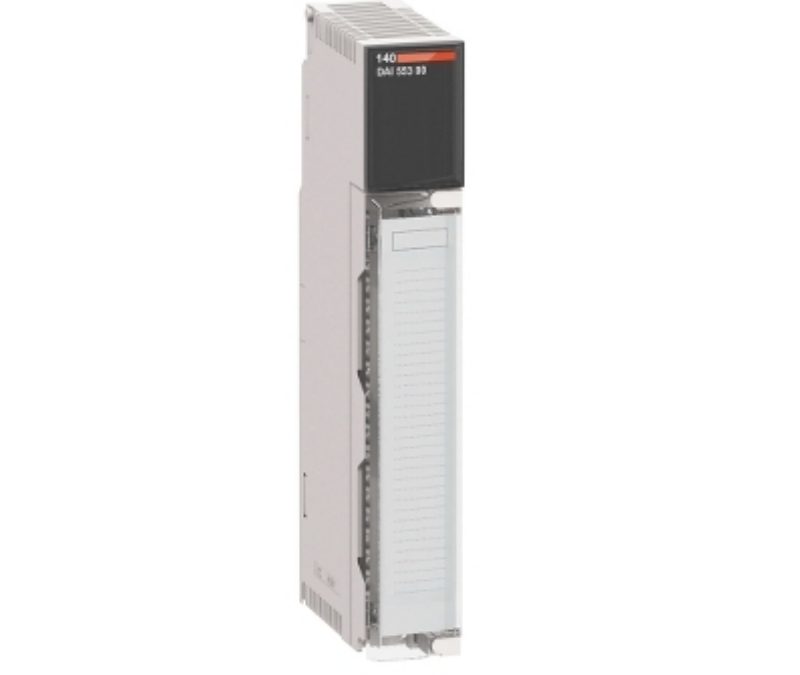

140DAI54300 Schneider Electric I/O Modules
Model: 140DAI54300 Schneider Electric I/O Modules
Part Number 140DAI54300 Ma…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Part Number | 140DAI54300 |
| Manufacturer | Schneider Electric |
| Type | I/O Modules |
| Model # | 140-DAI-543-00 |
| Warranty | 2 Year |
| Module format | Standard |
| Product or component type | VAC discrete input modules |
| Software name | Concept |
| ProWORX 32 | |
| Unity Pro | |
| Discrete input number | 16 |
| Group of channels | 2 |
| Addressing requirement | 1 input word |
| Discrete input voltage | 115 V AC |
| Input current | <= 13.2 mA 47…53 Hz |
| <= 11.1 mA 57…63 Hz | |
| Voltage state1 guaranteed | 85…132 V AC at 47…53 Hz |
| 79…132 V AC at 57…63 Hz | |
| Voltage state 0 guaranteed | 0…20 V AC at 47…53 Hz |
| 0…20 V AC at 57…63 Hz | |
| Input impedance | 14400 Ohm capacitive at 47…53 Hz |
| 12000 Ohm capacitive at 57…63 Hz | |
| Network frequency limits | 47…63 Hz |
| Leakage current | <= 2.1 mA |
| Absolute maximum input | 200 V 1 cycle |
| 156 V 10 s | |
| 132 V continuous | |
| Response time | 7.3…12.3 ms On-Off |
| 4.9…0.75 ms x line cycle Off-On | |
| Isolation between group | 1780 Vrms for 1 minute |
| Isolation between group and bus | 1780 Vrms for 1 minute |
| Bus current requirement | 180 mA |
| Power dissipation in W | <= 5.5 W |
| Local signalling | 16 LEDs green input status |
| 1 LED red external fault detected (F) | |
| 1 LED green bus communication is present (Active) | |
| Marking | CE |
